Machine description – Instruments/Controls
02-17-2021 4812325897EN 30

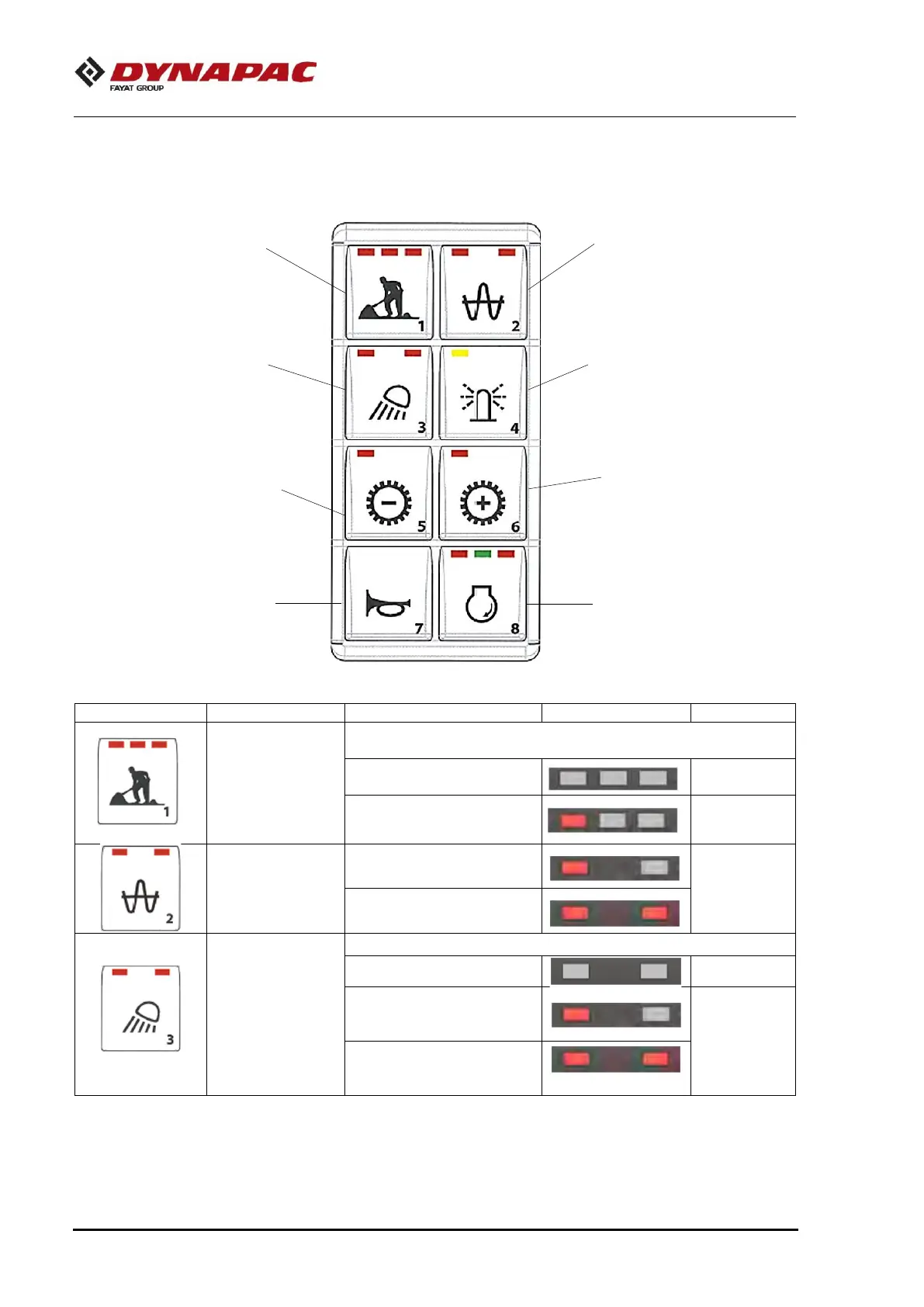

Functional description - Membrane panel
Symbol
Designation
Function
LED
LED Color
Work Mode
Vibration
Activates the working mode, which makes it possible to
vibration use
TURN OFF LED 
Transport Mode
-
LEFT LED 
Work Mode, vibration
Red
Amplitude
Selector
LEFT LED 
Amplitude low
Red
RIGHT LED 
Amplitude high
Work Lights
Enables ROPS/Cabin work lights
TURN OFF LED 
-
LEFT LED 
Turn on the lights on the
left side
Red
RIGHT LED  Turn on
the lights on the left and
right side simultaneously.
Amplitude high/low
Work mode
Rotating beacon
Work lights
Gear Selector - reduce
Gear Selector - increase
Horn
Engine speed selector
