Machine Description – Instruments/Controls
01-06-2022 4812134740EN 40
Machine Description – Instruments/Controls
Locations – Instruments and controls

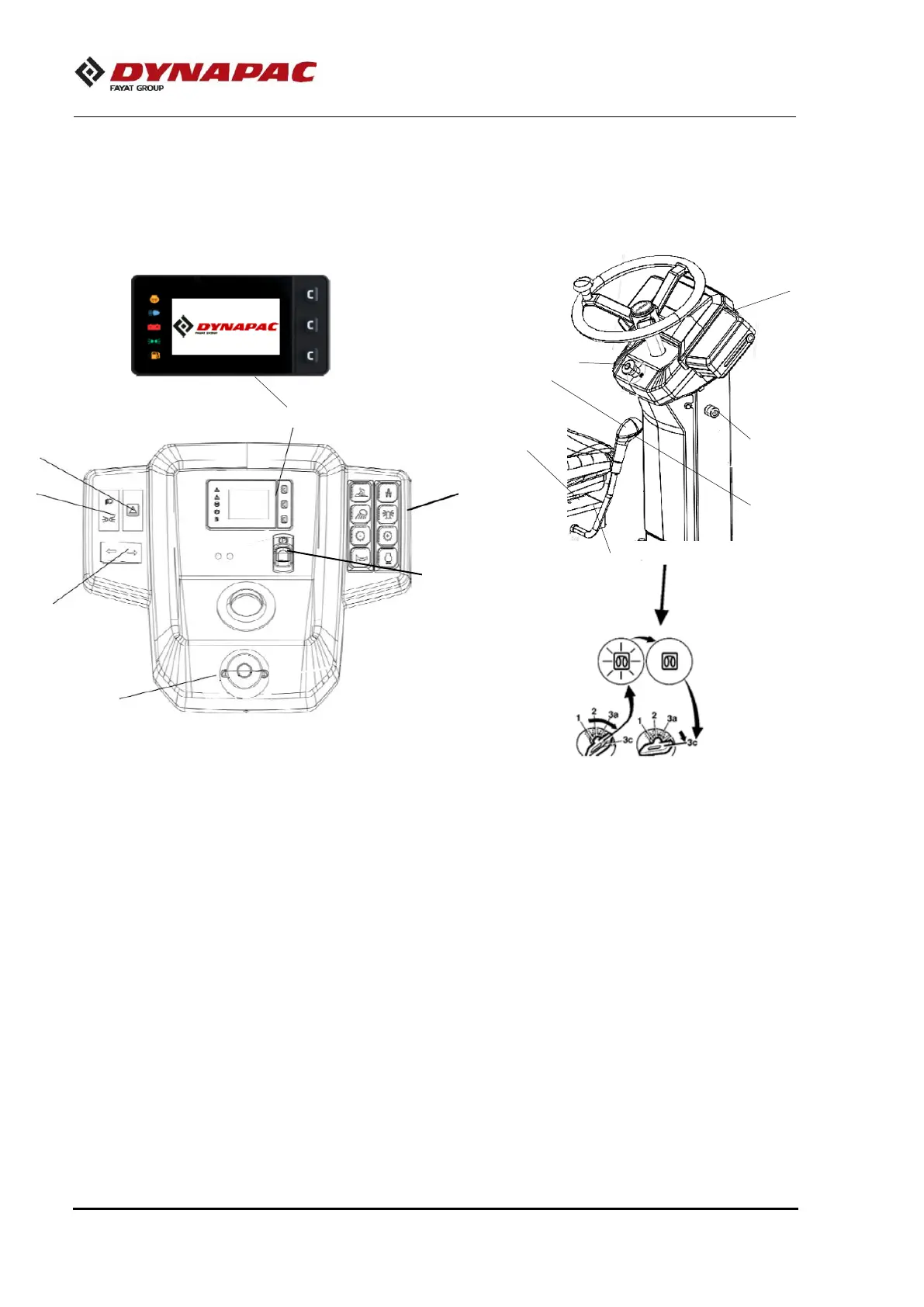

Fig. Instruments and control panel
1. Ignition key
2. Emergency Stop
3. Vibration Switch
4. Handbook compartment
5. Forward/reverse control
6. Seat switch
7. Instrument guard
8. Keypad
9. Traffic lights
10. Hazard lights
11. Direction indicators
12. Switch Parking brake
13. Display
