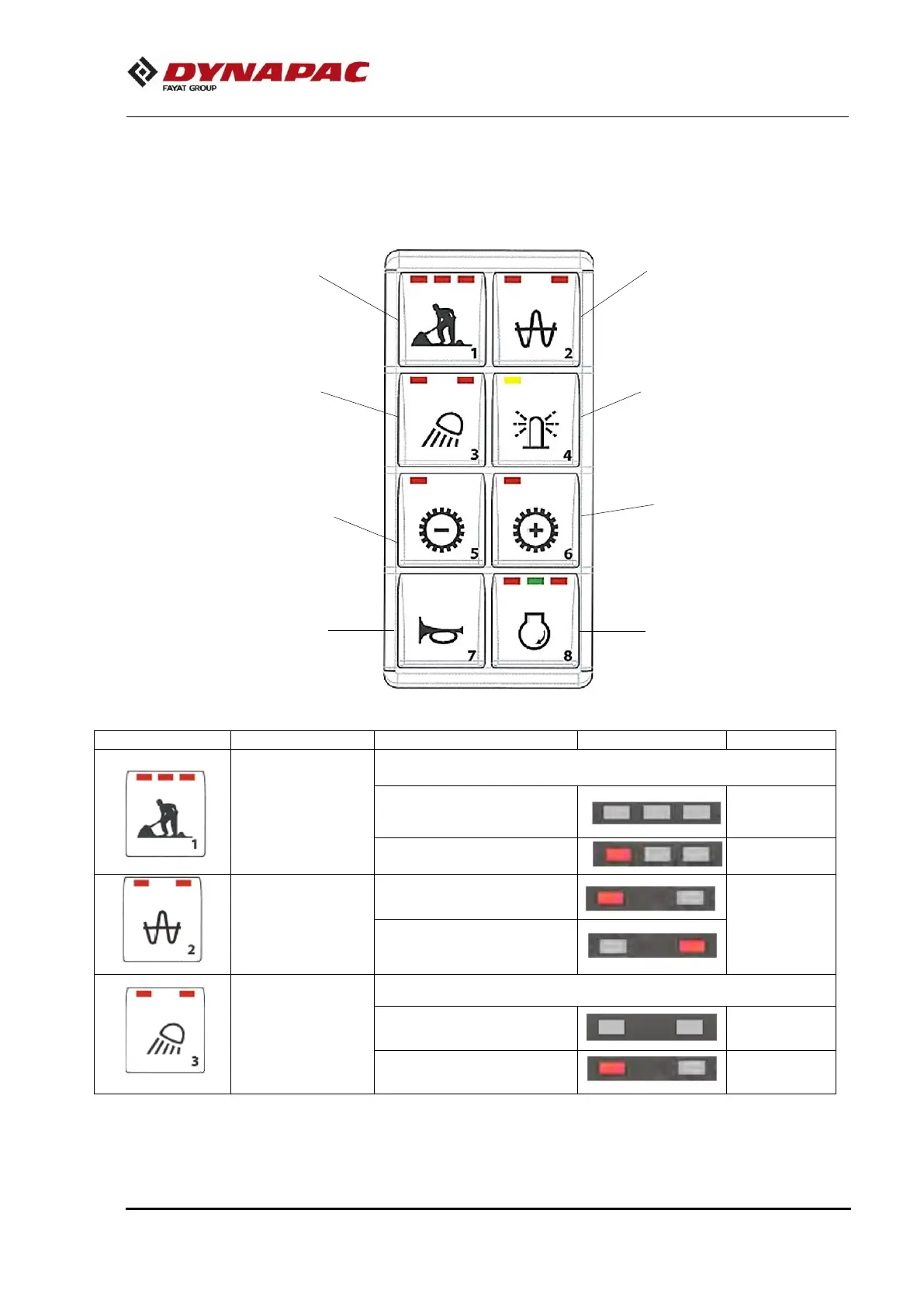

Functional Description – Keypad panel
Symbol
Designation
Function
LED
LED colour
Working mode
Vibration
Activates working mode, which makes it possible to use vibration
and edge cutter (optional).
LED OFF → Transport
mode
-
LED LEFT → Working
mode, vibration
Red
Amplitude
selector
LED LEFT → Low
amplitude
Red
LED RIGHT → High
amplitude
Working lights
Turns on the working lights of canopy/ROPS/cab
LED OFF
-
LED LEFT → Working
lights, ON
Red
Amplitude, hight/low
Working mode
Rotating beacon
Working lights
Low speed switch
High speed switch
Horn
Engine speed selector
