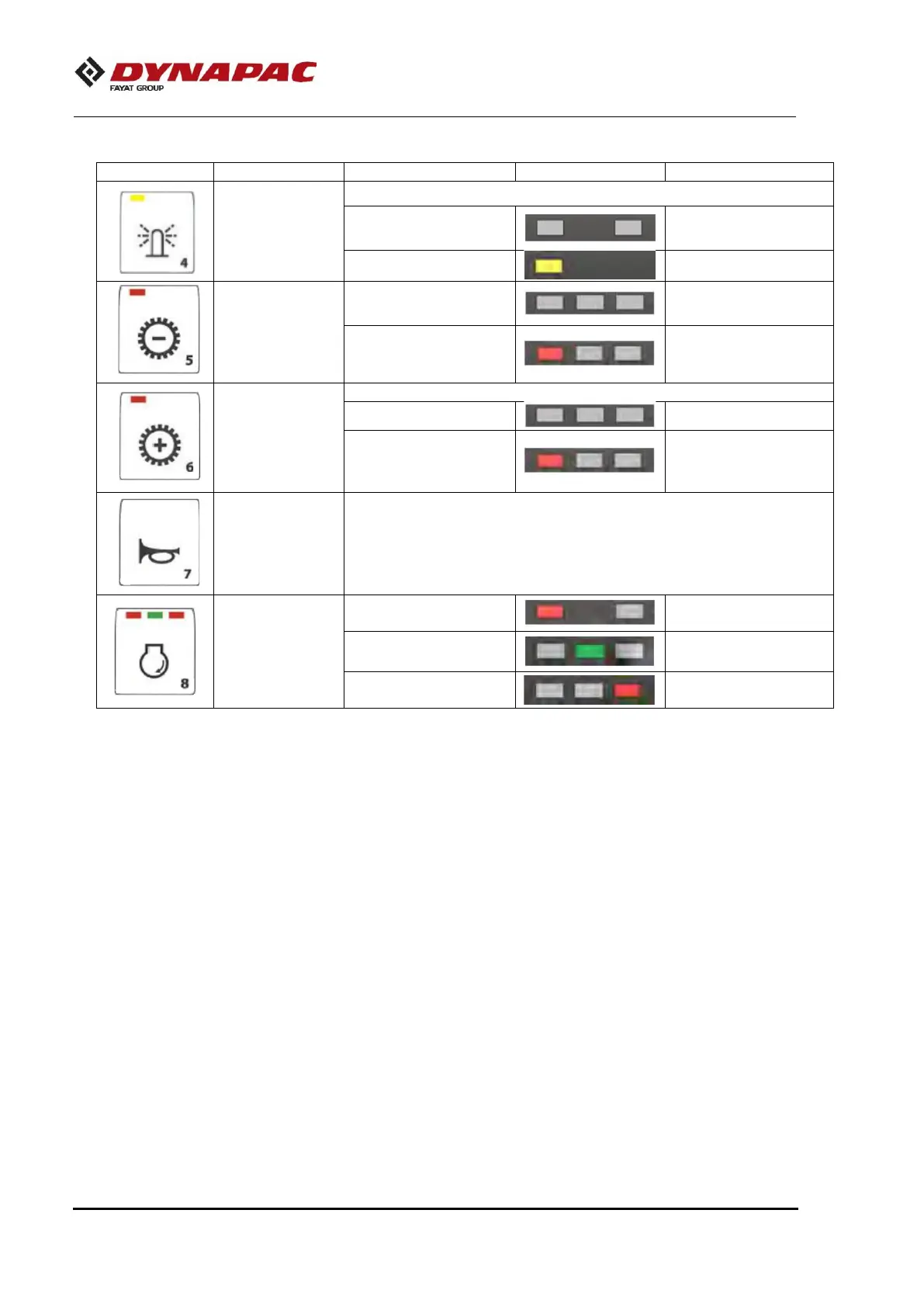

Machine Description – Instruments/Controls
01-06-2022 4812134740EN 44
Symbol
Designation
Function
LED
LED colour
Rotating beacon
(Option)
Press to activate the rotating beacon
LED OFF →
-
LED LEFT → On
Yellow
Low speed
switch
LED OFF → Working
mode
-
LED LEFT → Tortoise
mode on the drum
Red
Hi speed switch
Activate the change function of the machines
LED OFF
-
LED LEFT → Rabbit
mode on the drum
Red
Horn
Press the button to activate the Horn.
Engine speed
selector
LED LEFT → Low
speed
Red
LED CENTRE → Mid
mode
Green
LED RIGHT → High
speed
Red
