Relays
The table below shows fuse amperage and function.
Fuse
Amperage
Function
F1
Spare
-
F2
Spare
-
F3
5A
Display, Keypad, Dyn@link, P-Brake Switch
F4
5A
Neutral switch, Seat switch, alternator, vibration switch (joystick)
F5
3A
Compaction Meter (Option)
F6
10A
Front Working Lights Relay
F7
15A
Rear Working Lights Relay
F8
15A
Line heater relay
F9
15A
DEF tank power supply
F10
5A
Ignition switch
F11
15A
Power socket outlet (Platform and Rear)
Master ECU, Dynalink Power supply
F12
20A
Master ECU
F13
10A
Direction Indicators
F14
20A
Headlights, Position Lights
A6
Circuit board
K1
Starter relay
K30
Cab main relay
K31
Windshield wiper interval time relay
K36
Line heater relay
K37
DEF Supply line relay

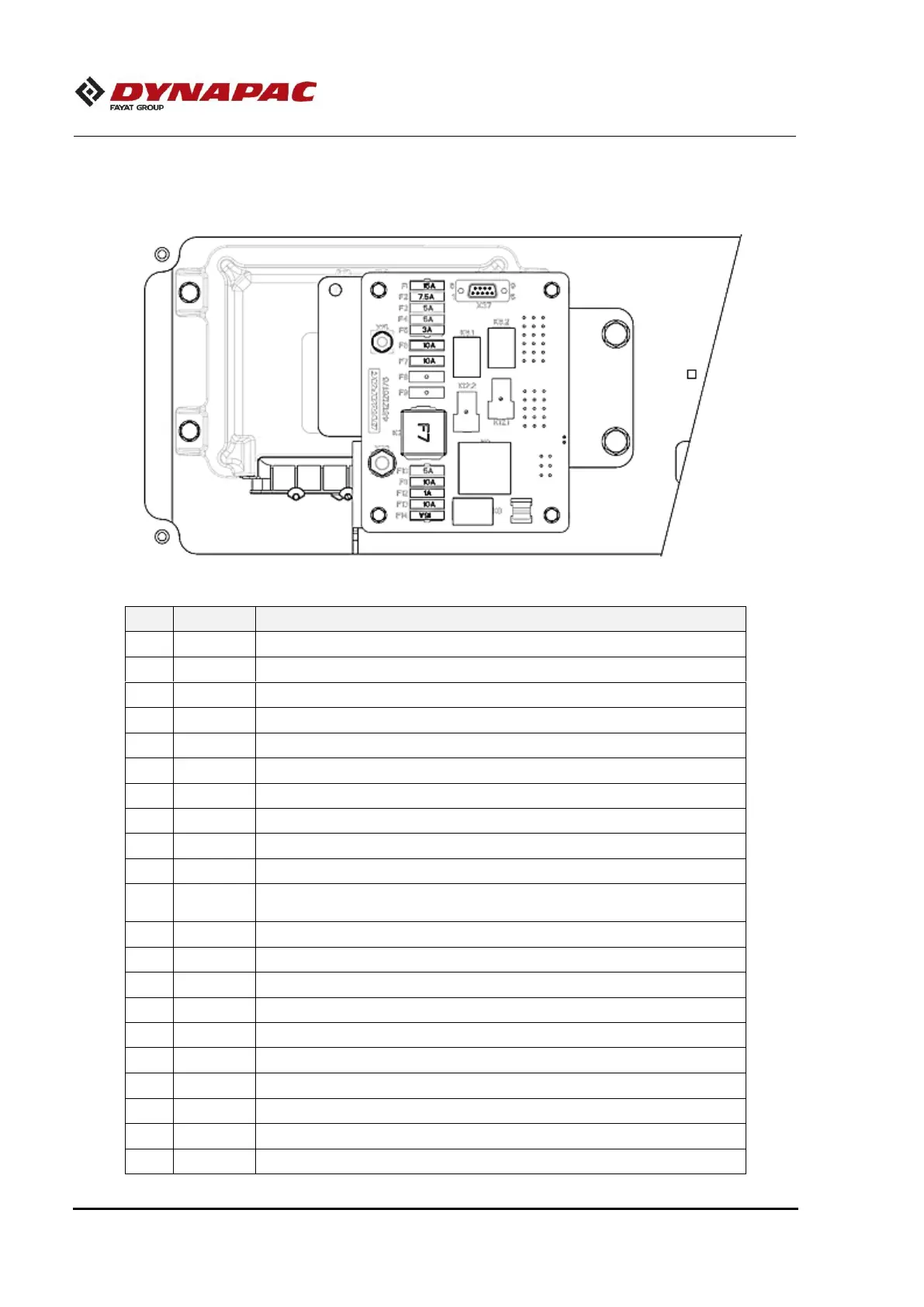

Fig. Relays and fuse board
