Machine Description – Instruments/Controls
01-06-2022 4812134740EN 48

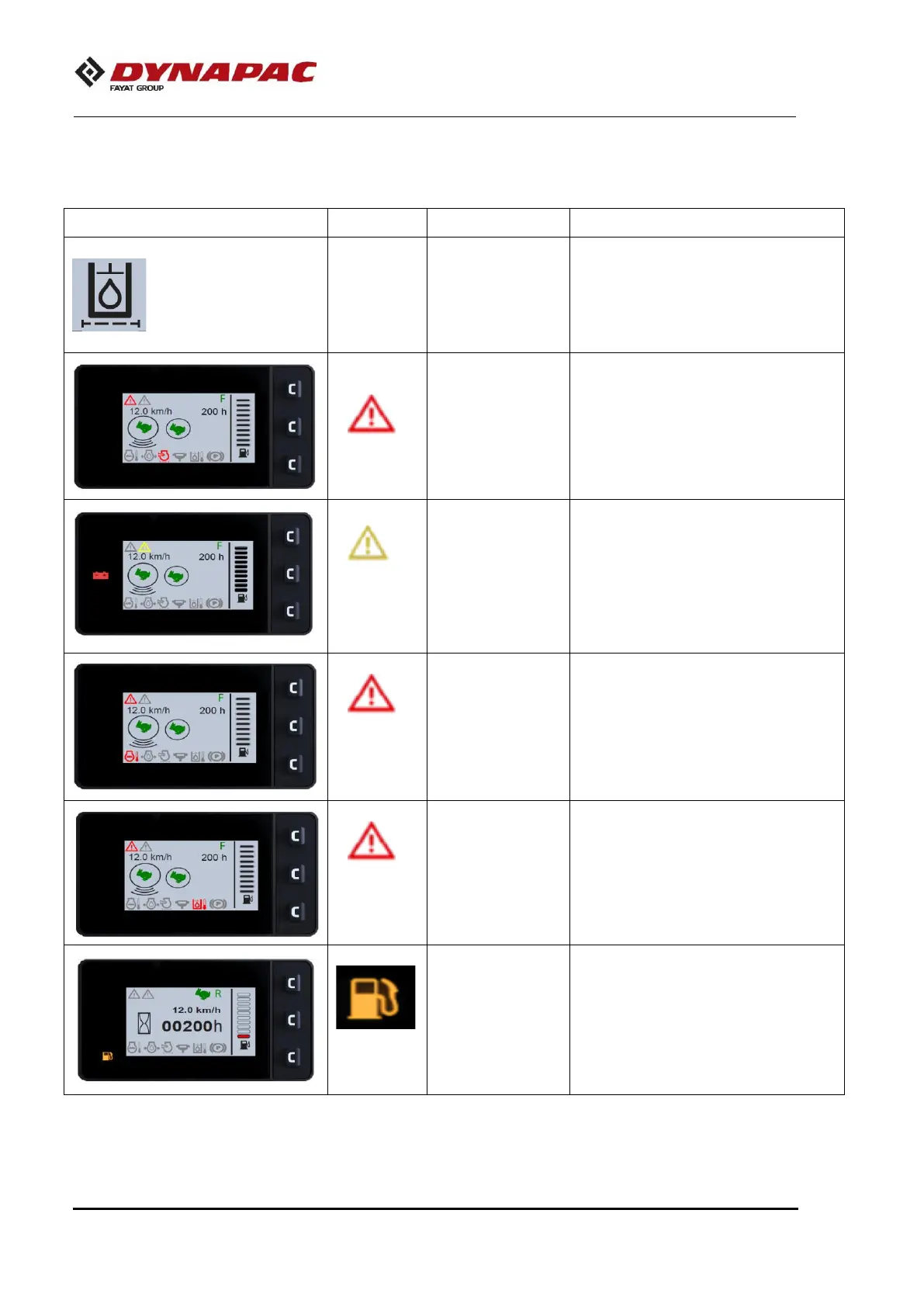

Functional Description – Tell- Tales & Alarms
Warning symbol,
hydraulic fluid
filter
When Hydraulic fluid filter clogged;
immediately symbol will come & the
hydraulic fluid filter must be
changed.
Warning symbol,
clogged air filter
If this symbol is shown when the
engine is running at full speed, the
air filter must be checked/replaced.
Warning symbol,
battery charging
If the symbol is shown when the
engine is running, then the
alternator is not charging.
Switch off the engine and locate the
fault.
Warning symbol,
engine
temperature
If this symbol is shown, the engine is
too hot. Stop the engine
immediately and locate the fault.
Refer also to the engine manual.
Warning symbol,
hydraulic fluid
temperature
This symbol is shown when the
hydraulic fluid is too hot.
Do not drive the roller; allow the
fluid to cool by running the engine
on idle, and then locate the fault.
Warning symbol,
low fuel level
If this symbol is shown, there is
less/upto 10% of the fuel left.
Bottom line of fuel is also showing in
