D 11 25

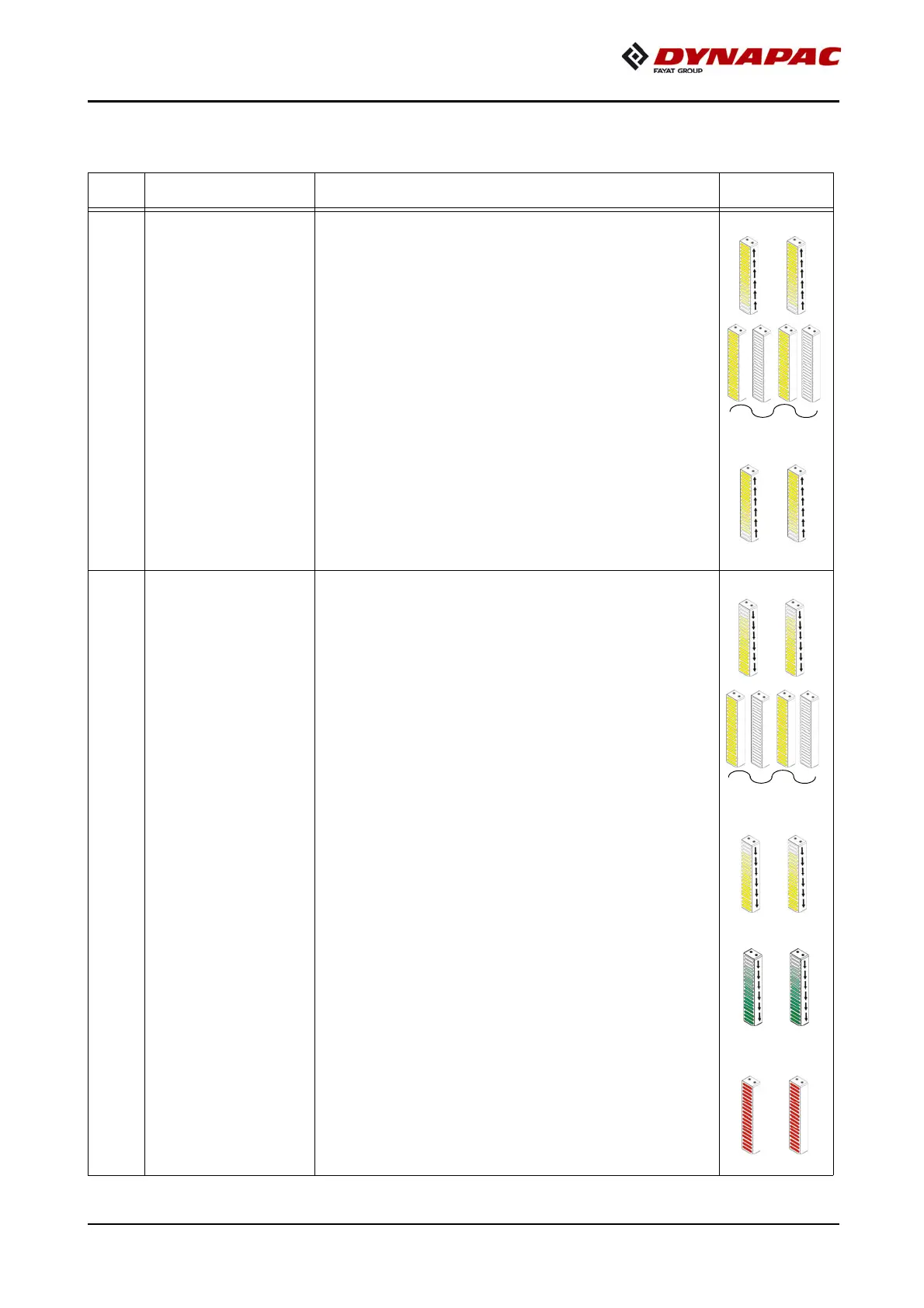

Item Designation Brief description LED display
40
Tell truck "Start
Tipping"(raise
truck hopper)
Pushbutton function with LED feedback:
- To change over to the "Start Tipping"
signal. (YELLOW SIGNAL, running
light ascending)
- Press button again to change signal
over to "Pause".
(YELLOW SIGNAL, flashing).
A
The button LED + button LED (41) flash-
es in the "PAUSE" MODE
- Press button once more to switch
again to "Start Tipping" signal.
(YELLOW SIGNAL, running light
ascending)
41
Tell truck to
"End Tipping"
(lower truck hop-
per) + tell truck to
"Detach, Depart"
Pushbutton function with LED feedback:
- To change over to the "End Tipping"
signal. (YELLOW SIGNAL, running
light descending)
- Press button again to change signal
over to "Pause".
(YELLOW SIGNAL, flashing).
A
The button LED + button LED (40) flash-
es in the "PAUSE" MODE
- Press button once more to switch
again to "Start Tipping" signal.
(YELLOW SIGNAL, running light
descending)
- After material transfer completed:
Press button >3 seconds to change
signal to "Detach, Depart".
(GREEN SIGNAL, running light
descending) + button LED (38),
flashing.
- After 10 seconds the system auto-
matically changes over to the
"STOP" signal. (RED SIGNAL)
