Protective roof (o)
Caution! Possible collision of parts
The following adjustments must be made before lowering
the roof:
- Control platform locked in central position
- Operating panel locked in central position
- Operating panel fixed in lowest position and engaged in
rearmost setting
- Steering wheel knob is at the bottom (wheeled paver)
- Driver's seats swivelled to middle setting and in
lowest position
- Backrests and armrests of driver's seats tilted forwards
- Front and side windows closed
- Engine hood and lateral flaps closed
- Rotary beacon swivelled inwards and in lowest setting
Caution! Possible damage to parts!
The following measures must be ensured before transport:

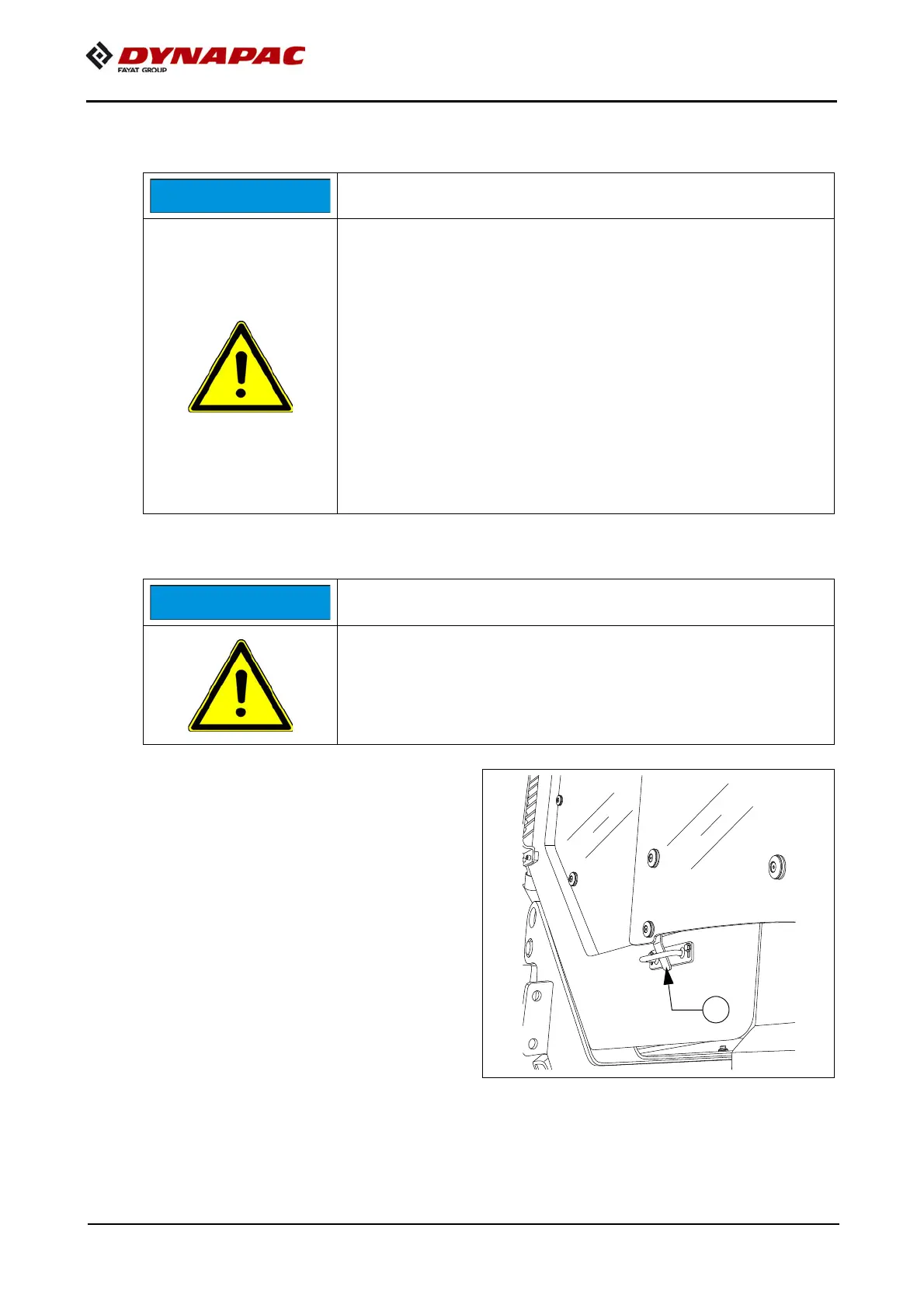

- After lowering the roof, the lock tabs (1) of the side win-
dows must be in the corresponding mountings on both
sides of the machine.
