Fayat Group Dynapac SD2500C - Adjusting the pressure; Setting pressure for screed control with paving stop + relieving:

D 41 33
Adjusting the pressure
Pressure adjustments can only be made while the diesel engine is running.
Therefore:
- Start the diesel engine and set the traction controller
(15) to zero (precaution against inadvertent advancing).
- Activate the "floating position" using switch (70).
For screed charging/relieving:
- Set the drive lever (13) to the
centre position.
- Activate the screed relieving
function (73) or the screen charging
function (74) (LED ON).
- Set the pressure using pressure regu-
lating valve (A) ; read it off at the ma-
nometer (B).
A
When screed charging/relieving is nec-
essary and automatic levelling is used
(grade control and/or slope control), the
compacting performance changes
(layer thickness).
A
The pressure can also be set or corrected during paving.
(Max. 50 bar)

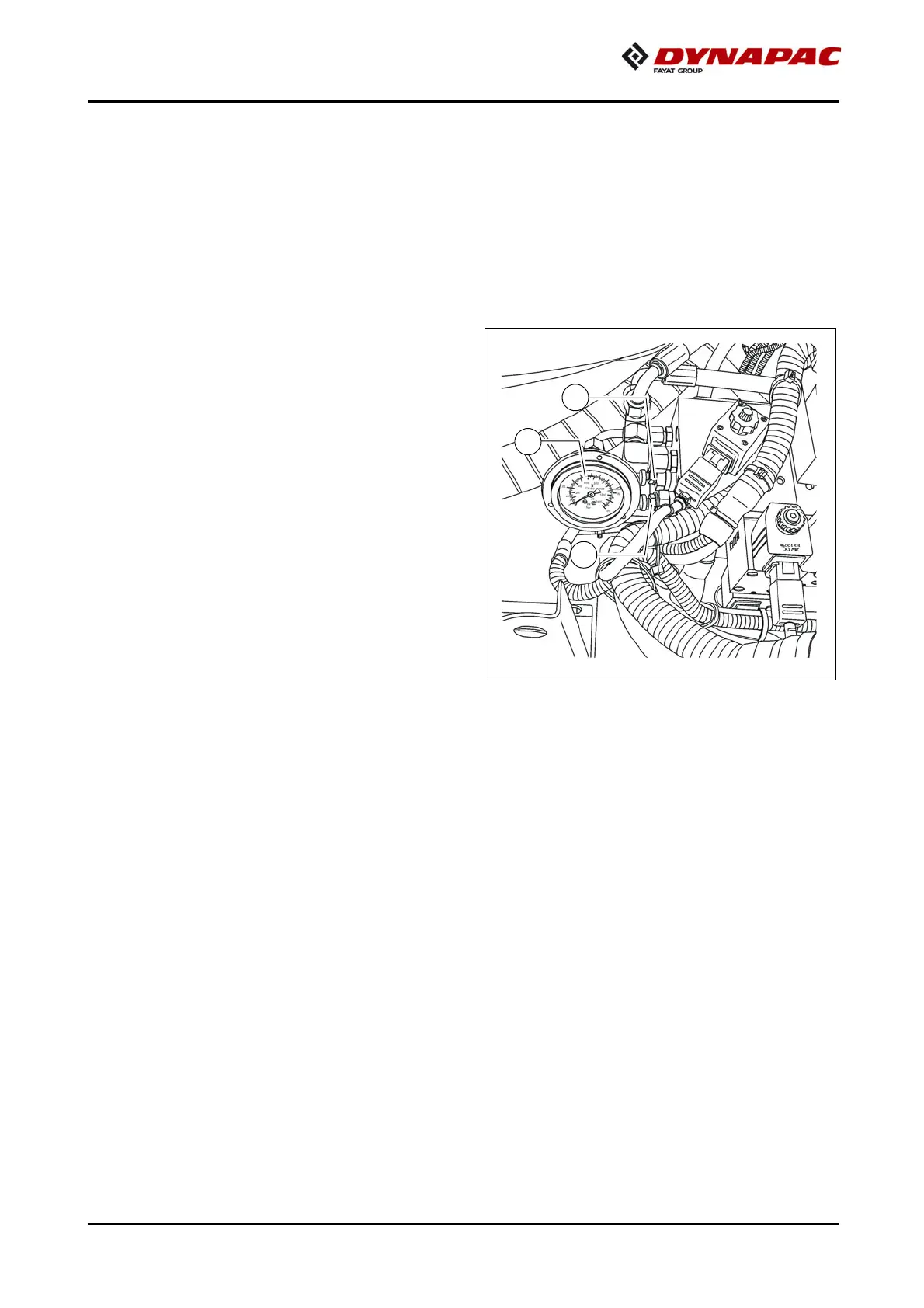

Setting pressure for screed control with paving stop + relieving:
- Set the drive lever (13) to the centre position.
- Activate the "floating position" (70) function (LED ON).
- Set the pressure using pressure regulating valve (C); read it off at the
manometer (A).
(Basic setting: 20 bar)
B
A
C
