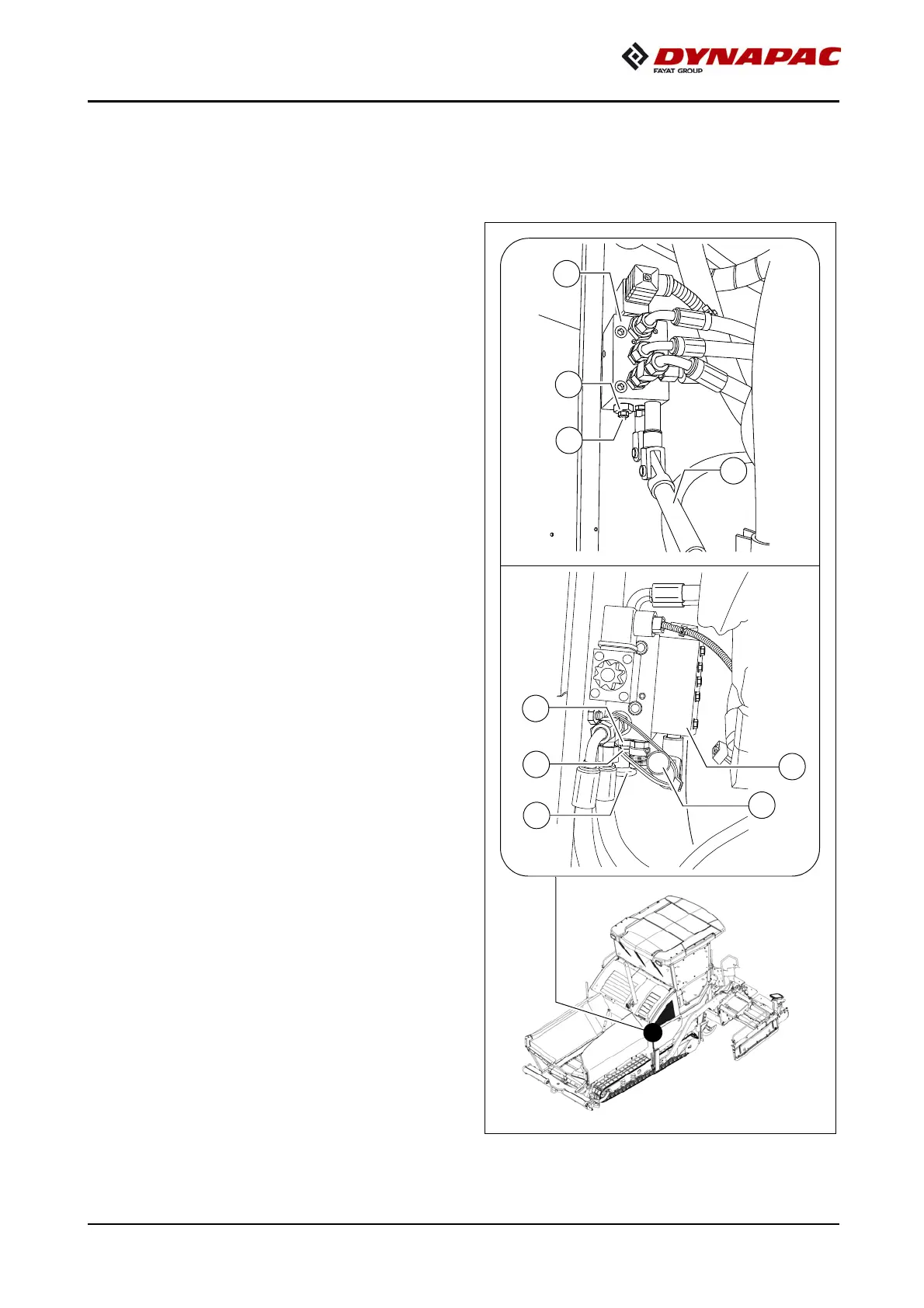

A hand pump (1) is located in the engine compartment (left side); it must be actuated
to be able to tow the machine.
Pressure for releasing the traction system brakes is built up with the hand pump.
- Release lock nut (2), screw threaded
dowel (3) into pump as far as possible
and secure with lock nut.
A
From serial number 2014-2016, 2021
et seq.
- Push knob (3a) into the valve body.
While pumping (next step), check
that the knob remains in the pressed
position.
- Actuate lever (4) of hand pump until
sufficient pressure has been built
up and traction system brakes have
been released.
m
On completion of the towing process, re-
store the initial status.
m
Only release the traction system brakes
when the machine is sufficiently secured
against accidental rolling or is already
properly connected to the towing vehicle.
