C-320/C-320C and C-380/C-380C Technical Service Manual Revised 06/09
22

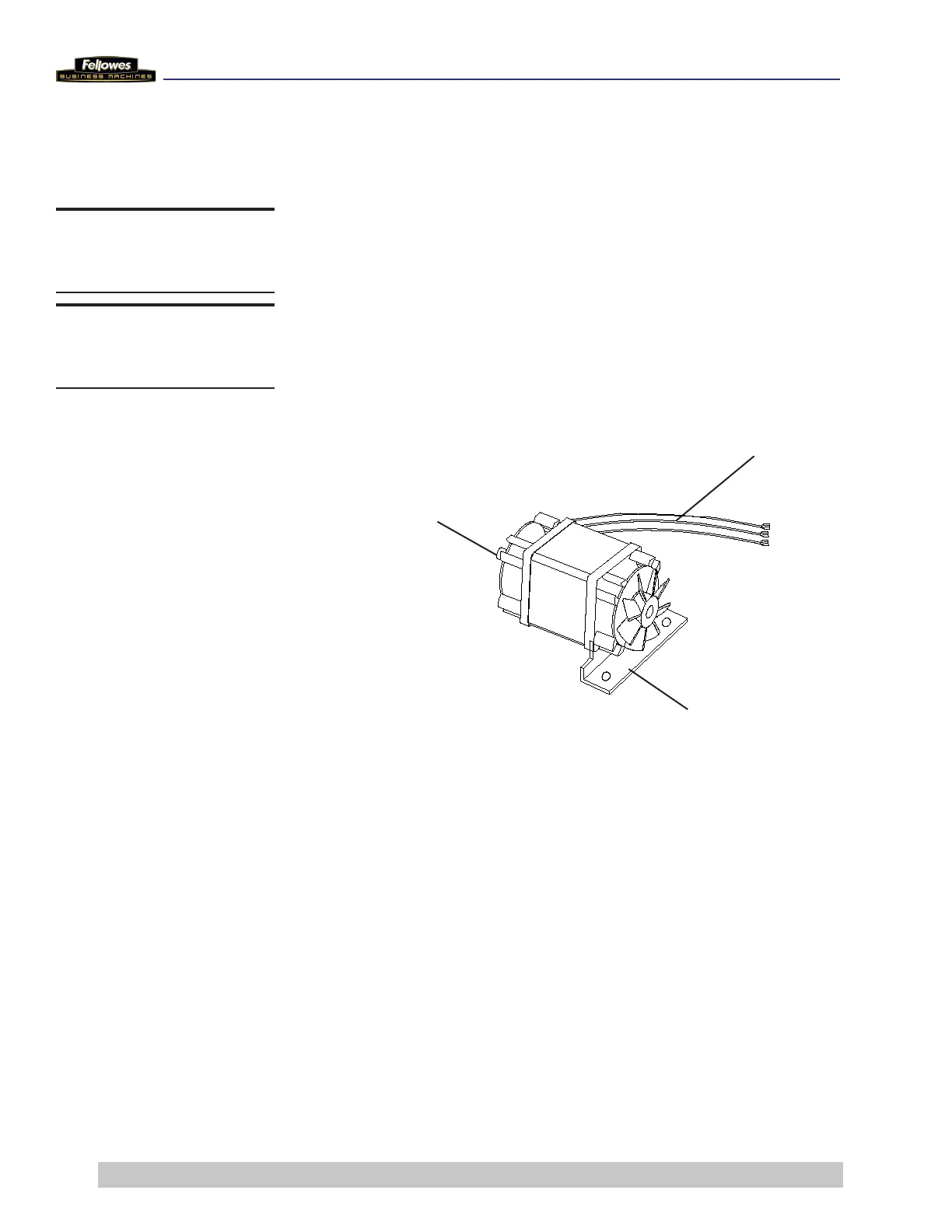

Remove Motor
The motor is supplied as a complete assembly. If any part of the motor is
defective, the entire motor must be replaced.
To remove the motor:
1 Make sure the large plastic gear that meshes with the motor
drive shaft is removed.
2 Remove the 4 bolts and locking washers that hold the motor to
the left bearing plate.
3 Support the bearing plate and cutting assembly as you remove
the motor.
DO THIS FIRST
Remove Gearbox
TOOLS
Phillips screwdriver
motor drive shaft
motor
mounting
bracket
motor
wires
