Replace Power Receptacle
A receptacle for the power cord is located on the back of the cabinet. The
receptacle is held in position by a support bracket that attaches to the cabinet
shelf.
To replace the power outlet:
1 Make sure the power cord, disconnect switch, and ground wires are
disconnected from the connectors on the receptacle.
2 Remove the 2 screws that hold the support bracket to the cabinet
shelf.
3 Push the receptacle through the opening at the back of the cabinet.
4 Remove the 2 screws that hold the receptacle to the support
bracket.
5 Place the new receptacle in the support bracket.
6 Place the receptacle through the opening in the cabinet and attach
the support bracket to the cabinet shelf.
7 Reconnect the wires.
DO THIS FIRST
Remove Housing Cover
TOOLS
Long nose pliers
Phillips screwdriver

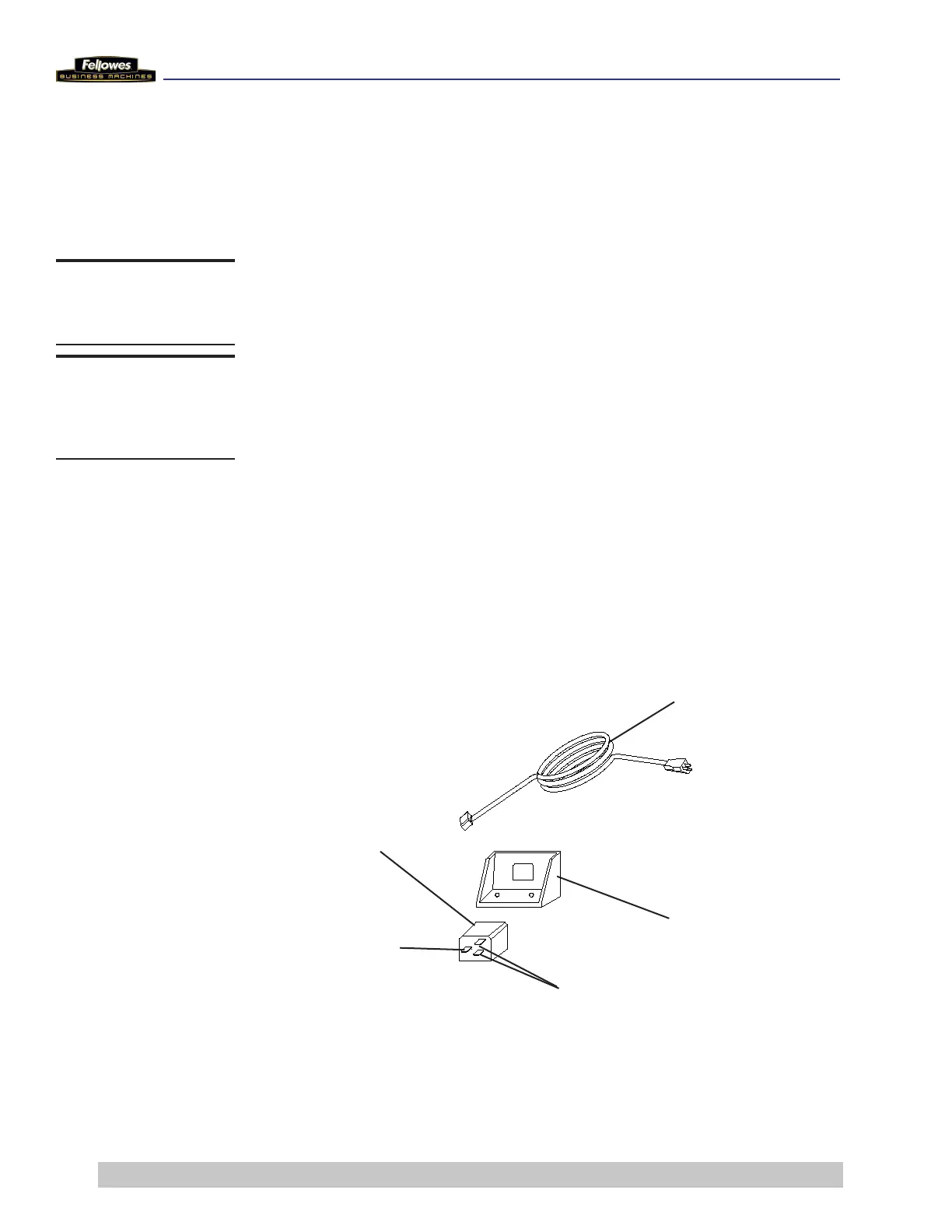

Power Cord Assembly
power cord
support bracket
power cord
receptacle
ground
wire
connector
pc board
wire
connectors

Fellowes Powershred C-320C Specifications

General

Noise level	62 dB
Basket volume	92 L
Working width	254 mm
Shredding size	3.9 x 30 mm
Shredding type	Cross shredding
Paper shredding	Yes

Weight and Dimensions

Weight	48400 g
