Revised 06/09 C-320/C-320C and C-380/C-380C Technical Service Manual
25
DO THIS FIRST
Remove the Cutting
Assembly and Motor
TOOLS
Long nose pliers
Phillips screwdriver
Replace Basket Full Sensor
The motor will stop if the wastebasket is full. The shredder will not operate
until the excess paper is cleared.
The basket full sensor is an electric eye that monitors the paper level in the
basket. The sensor consists of a transmitter and receiver LEDs. On the C-320
and C-380, the LEDs t in special 2-piece brackets that are attached to the
left and right sides of the underside of the cabinet shelf. On the C-320C and
C-380C, the LEDs t into a bracket that is inserted into an opening on the
cabinet shelf. The wires from the sensor connect to the PC board. The sensor
connects to the Basket Full indicator LEDs through the PC board. (See the
wiring diagram.)
To replace the C-320 and C-380 basket full sensor:
1 Disconnect the basket full sensor wire connector from the PC board.
See the wiring diagram.
2 Remove the screw that holds each basket full sensor bracket to the
underside of the cabinet shelf. Note the color of each LED.
3 Separate the 2 pieces of the bracket and remove the LED.
4 Thread a new transmitter or receiver LED through the opening in the
cabinet shelf and place the LED in one piece of the brackets. Reunite
the 2 pieces of the bracket.
5 Place the bracket in position on the bottom of the cabinet
shelf making sure the 2 plastic tabs on each bracket t in the
corresponding holes in the cabinet shelf.
6 Reattach the brackets to the cabinet shelf. Make sure the two LEDs
are pointing at each other and adjust, if needed.
7 Plug the new basket full sensor wire connector into the PC board.
8 Place the sensor wires in the wire guides.

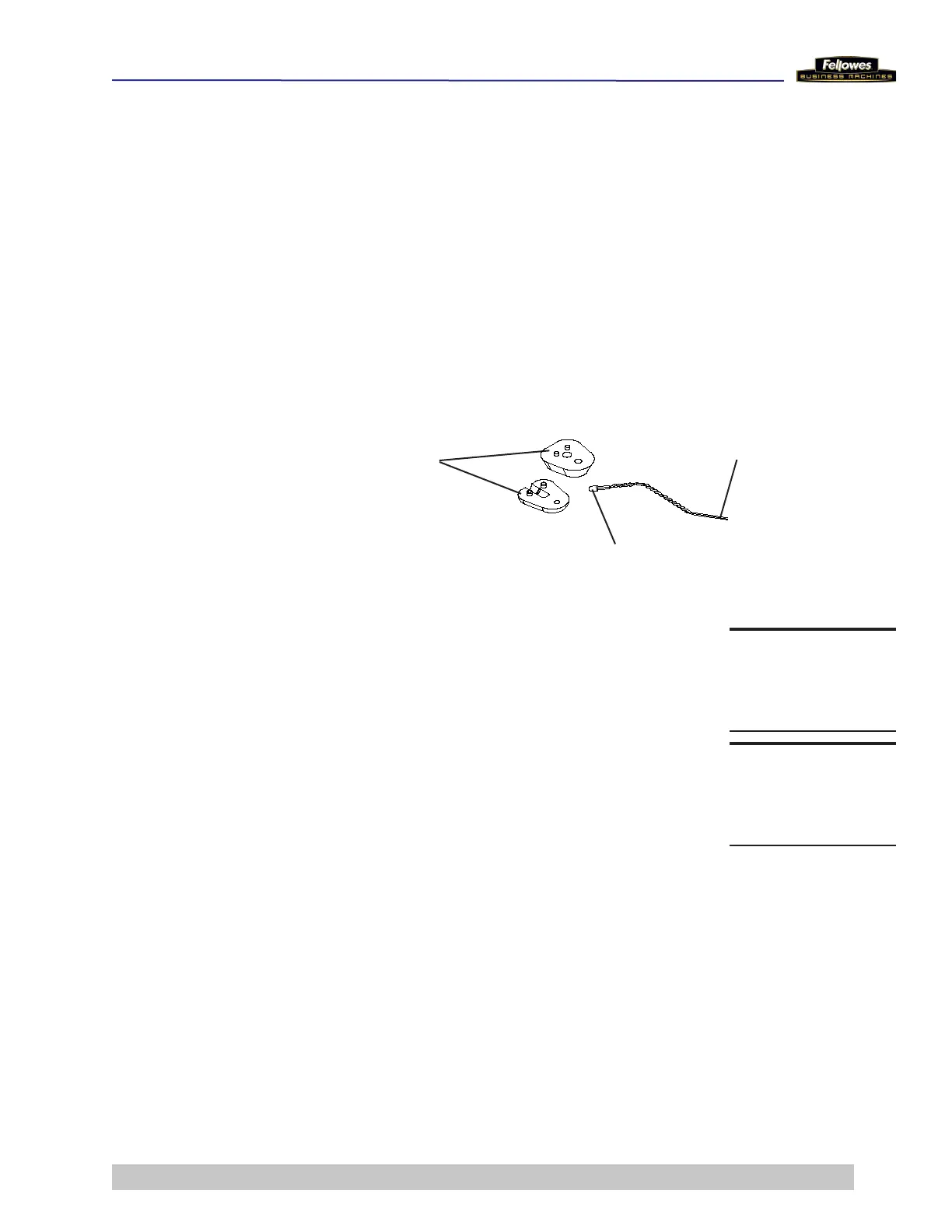

2-piece bracket
attaches to
the underside
of the cabinet
shelf
transmitter or
receiver LED
wire connects to
PC board
C-320 & C-380
Basket Full Sensor
