1. Operating instructions
1.1 Introduction
Dear Customer,
DIVA D C24 is a high-efficiency heat generator for heating and domestic hot water production, running on Natural Gas
or LPG and equipped with a microprocessor control system.
1.2 Control panel
Panel

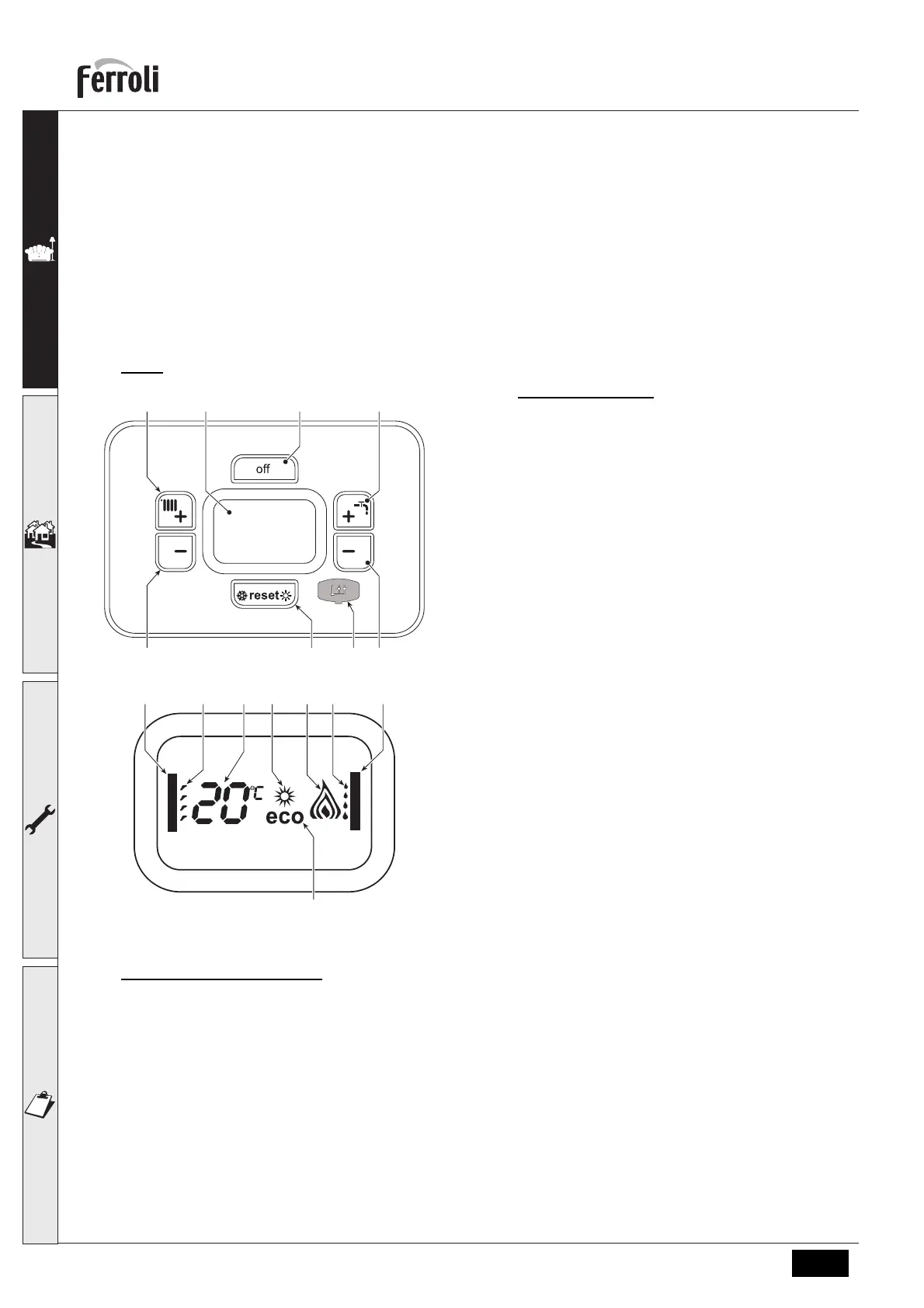

fig. 1- Control panel
Panel legend fig. 1
1 DHW temperature setting decrease button
2 DHW temperature setting increase button
3 Heating system temperature setting decrease
button
4 Heating system temperature setting increase
button
5 Display
6 "Sliding Temperature" Menu - Summer/Winter
mode selection - Reset button
7 Unit On/Off - Economy/Comfort mode selection
button
8 DHW symbol
9 DHW mode
10 Summer mode
11 Multifunction
12 Eco (Economy) mode
13 Heating
14 Heating symbol
15 Burner lit and actual power level.
16 Service Tool connection
Indication during operation
Heating
A heating demand (generated by the Room Thermostat or Remote Timer Control) is indicated by the symbol 13 flashing
on the display.
The display (detail 11 - fig. 1) shows the actual heating flow temperature and, during heating standby time, the message
“d2”.
In case of continuous messages "d2" reduce the parameter P01 (ignition power - See table 3) to a minimum of 9.
DHW (domestic hot water)
A DHW demand (generated by drawing hot water) is indicated by the symbol 9 flashing on the display.
The display (detail 11 - fig. 1 ) shows the actual DHW outlet temperature and, during DHW standby time, the message “d1“ .
1
72
1636
5
11 1510
12
4
14 13 9 8
