4.6 Wiring diagram

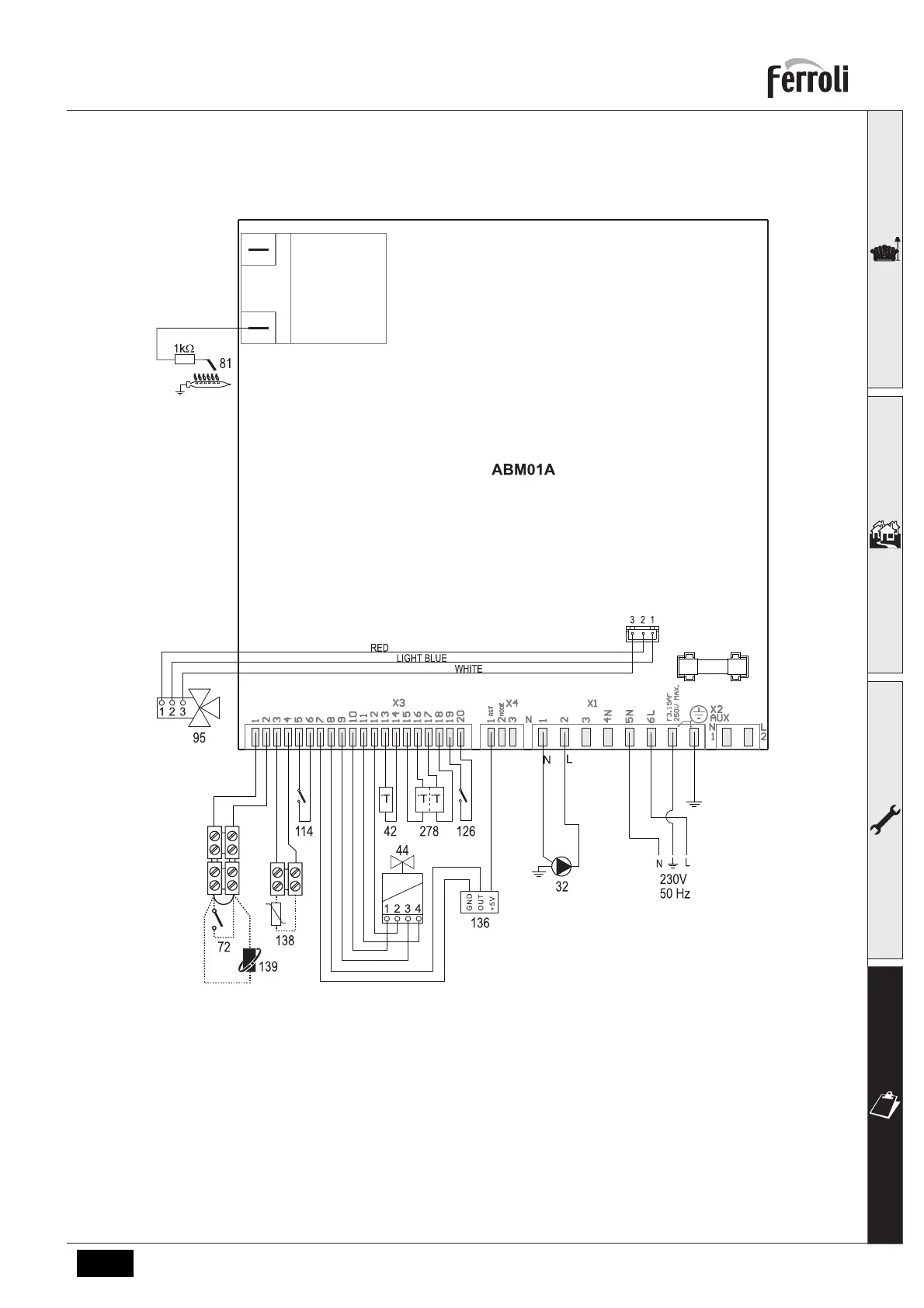

fig. 19- Wiring diagram
A
Attention: Before connecting the room thermostat or remote timer control, remove the jumper on the ter-
minal block.
32 Heating circulating pump
42 DHW temperature sensor
44 Gas valve
72 Room thermostat (optional)
81 Ignition/detection electrode
95 Diverter valve
114 Water pressure switch
126 Fume thermostat
136 Flowmeter
138 External probe (optional)
139 Remote timer control (optional)
278 Double sensor (Safety + heating)
