DIVA D C24
53EN
cod. 3542B920 - Rev 00 - 11/2022
4.2 General view and main components
7 Gas inlet - Ø 3/4”
8 DHW outlet - Ø 1/2”
9 DHW inlet - Ø 1/2”
10 System flow - Ø 3/4”
11 System return - Ø 3/4”
14 Safety valve
22 Burner
27 Exchanger
28 Fume manifold
32 Heating circulating pump
36 Automatic air vent
37 Cold water inlet filter
42 DHW temperature sensor
44 Gas valve
56 Expansion vessel
74 System filling faucet
78 Anti-backflow device
81 Ignition and detection electrode
95 Diverter valve
114 Water pressure switch
126 Fume thermostat
136 Flowmeter
145 Pressure gauge
194 DHW exchanger
278 Double sensor (Safety + heating)

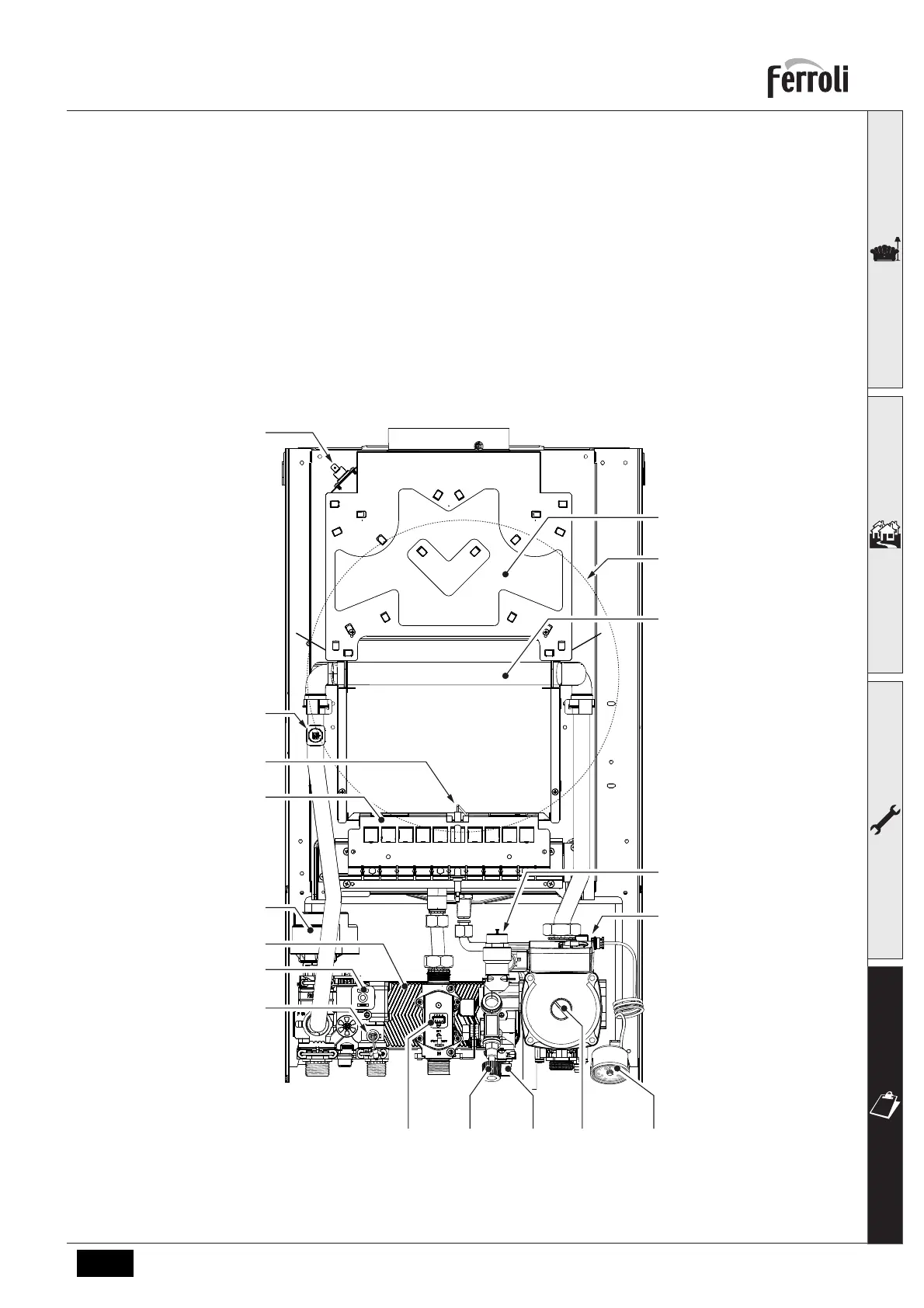

fig. 17- General view - DIVA D C24
78
56
27
126
278
81
22
95
194
42
114
10 8 7
44 74 37 32 145
911
14
36
