11
EN
Cod. 3541T090 - Rev. 00 - 06/2019
DIMENSIONAL AND PHYSICAL DATA
3. DIMENSIONAL AND PHYSICAL DATA
3.1 Overall dimensions indoor unit
440 320
700
29
220
110
220
440
115
22950162
44
55 65 66 66 65 123
93
160
202
11
GL
14 74
A6
8
10
7
9

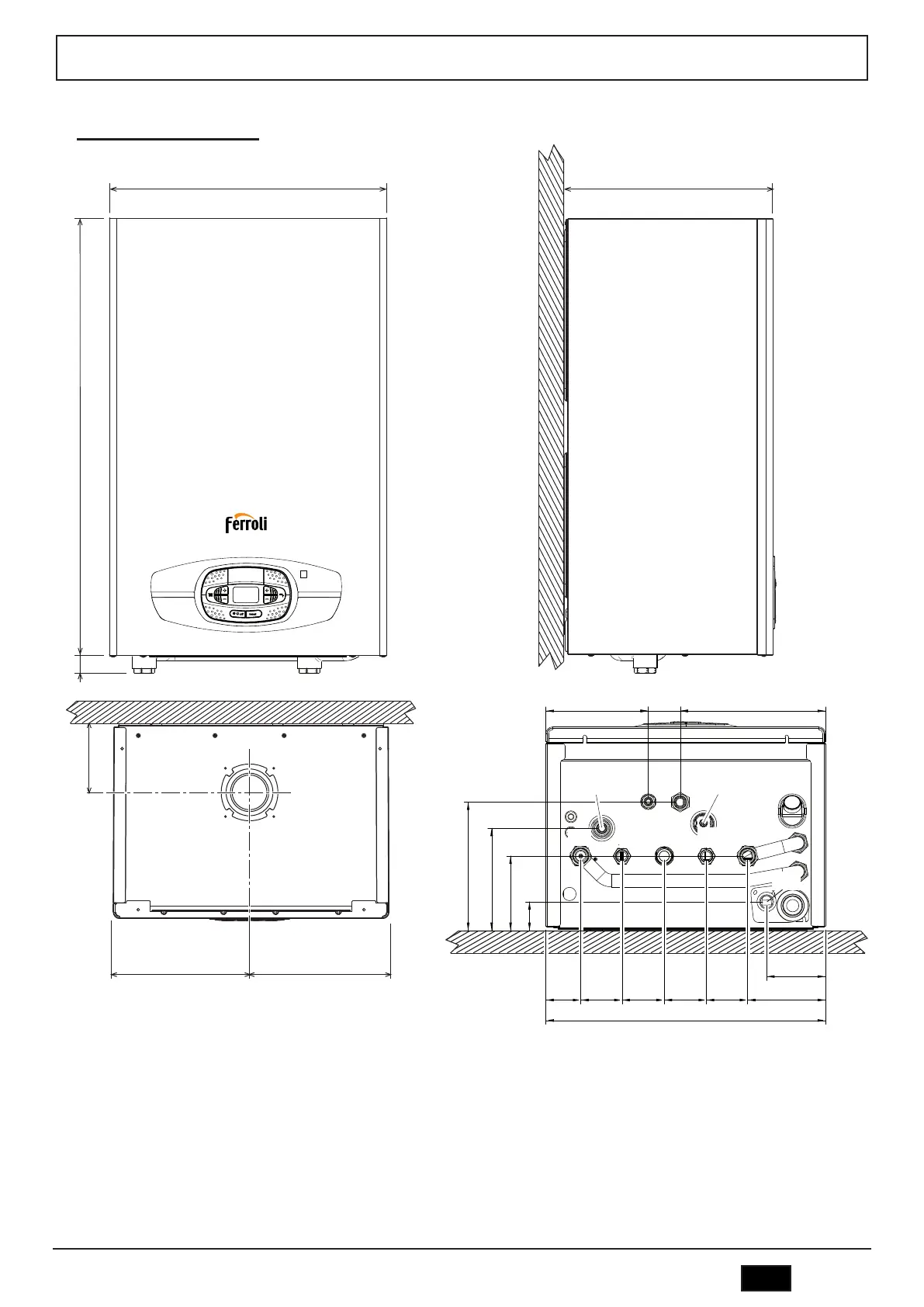

Top view
Front view
Bottom view
Side view
fig. 6 - dimensional data and connections
7 Boiler Gas inlet - Ø 3/4”
8 DHW water outlet - Ø 1/2”
9 DHW water inlet - Ø 1/2”
10 Plant delivery - Ø 3/4”
11 Plant return - Ø 3/4”
14 Safety valve drain / drain taps
74 System filling cock
A6 Condensate discharge connection
L Liquid line
G Gas line
