Ferroli OMNIA HYBRID C User Manual

13
EN
Cod. 3541T090 - Rev. 00 - 06/2019

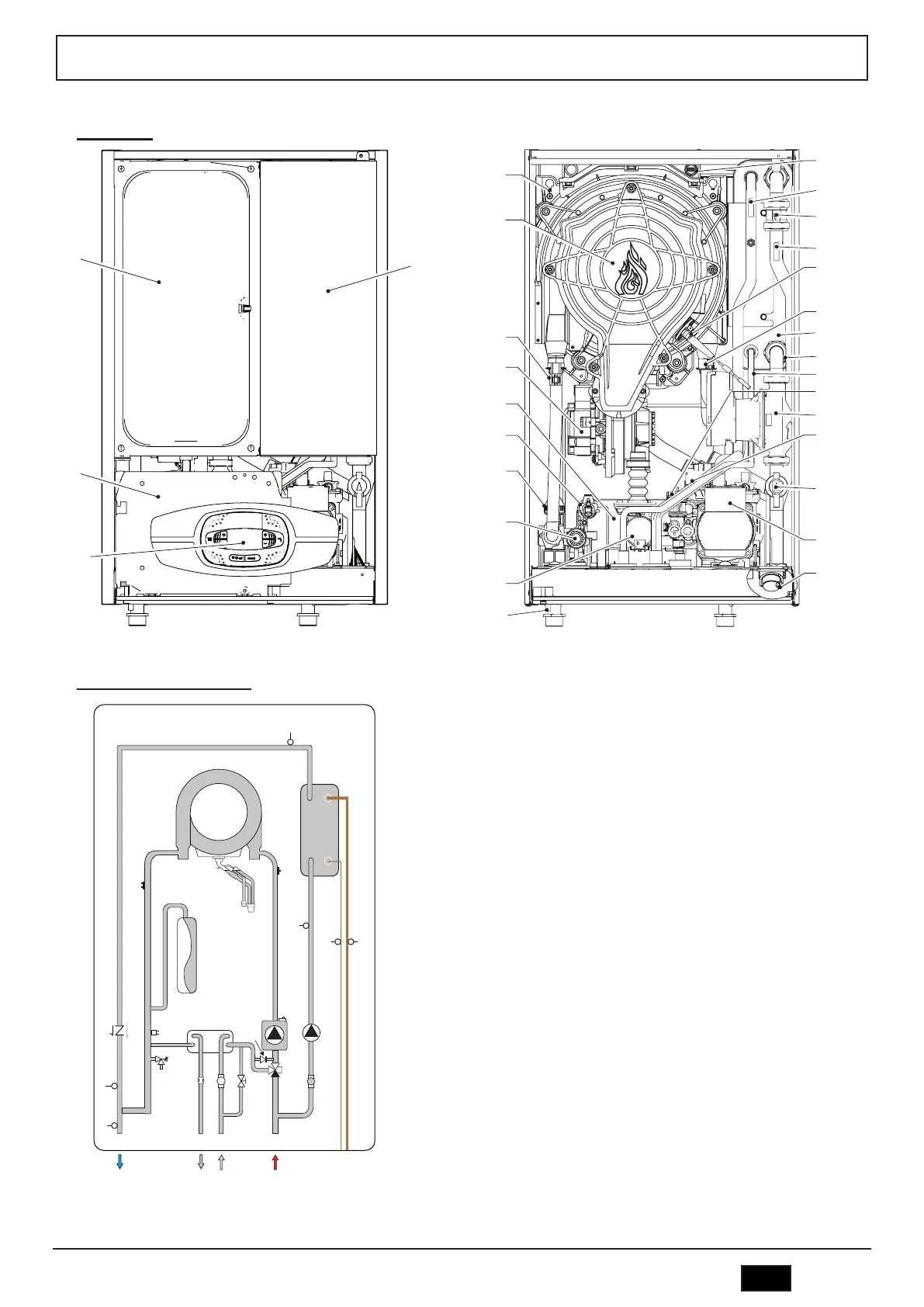

GENERAL VIEW AND INTERNAL UNIT HYDRAULIC DIAGRAM
4. GENERAL VIEW AND INTERNAL UNIT HYDRAULIC DIAGRAM
4.1 General view
SPHP
FL
CHP
4
56
J5
J6
J3
1
196
191
17
81
186
136
95
32
145
350
34
16
194
42
114
14
44
T1B
4a
TW_out
TW_in
T2
T2B
fig. 9 - General view
4.2 Indoor unit hydraulic diagram
241
194
14
G
OMNIA_HYBRID_C_
L
114
95
74
56
193
186
34
10
11
8
9
42
36
32
7:BLQ
7:BRXW
CHP
SPHP
FL
136
7
7E
17
7%7
fig. 10 - Indoor unit hydraulic diagram
LEGEND
1 Heat pump electric panel
4 Boiler electric box
4a Boiler controller
8 DHW water outlet
9 DHW water inlet
10 Plant delivery
11 Plant return
14 Safety valve
16 Fan
17 Check valve
32 Heating circulating pump boiler
34 Heating temperature sensor boiler
36 Automatic air vent
42 DHW temperature probe
44 Gas valve
56 Expansion vessel
74 System filling tap
81 Ignition/Ionisation electrode
95 Diverter valve boiler
114 Water pressure switch
136 Flow meter
145 Water gauge
186 Return sensor boiler
191 Fume temperature sensor
193 Trap boiler
194 DHW exchanger
196 Condensate tray
241 Automatic bypass (inside the pump unit boiler)
350 Burner/Fan assembly
CHP Circolator heat pump
FL Flow heat pump
G Gas line
L Liquid line
SPHP Heat pump plate heat exchanger
T1 Heat pump outlet water temperature probe
T1B Indoor unit outlet water temperature probe
T2 Heat pump liquid refrigerant temperature probe
T2B heat pump gas temperature probe
TW_in Heat pump plate heat exchanger water inlet tem
-
perature probe
TW_out Heat pump plate heat exchanger water outlet
temperature probe
