36
ACCESSORIES

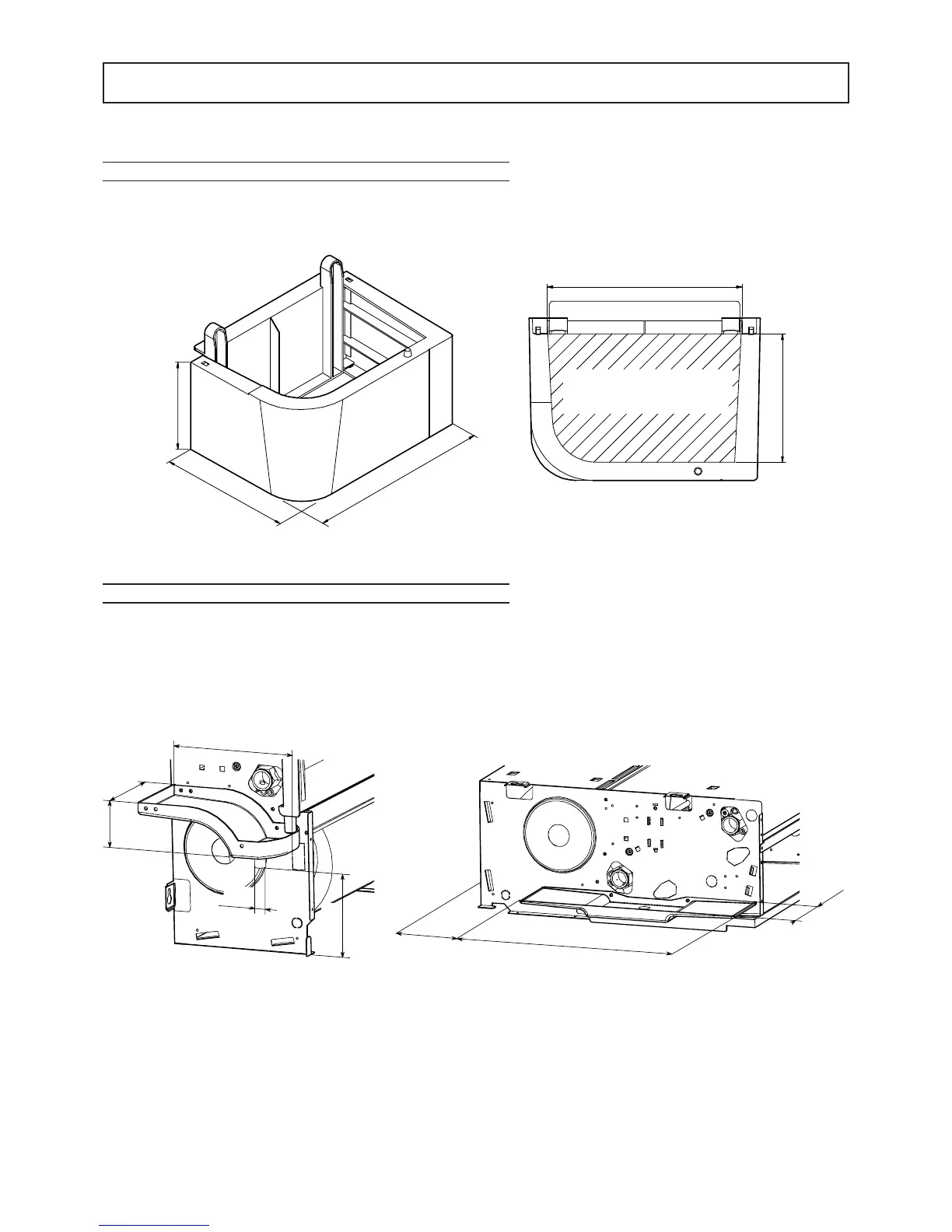

OVERALL DIMENSIONS OF BEARING FEET (PA-F)
Entirely made of anti-UV plastic material, the feet are fitted to the base of cabinets which intake from below when
these are installed on the floor.
OVERALL DIMENSIONS OF TRAY (BCO-F/BCV-F)
This is made of plastic material. It collects the condensation that forms on the non-insulated wet connections and
valve kits (if installed) during summer mode operation and conveys it outside. This accessory is supplied for both
horizontally and vertically installed appliances.
100
113.5
PIPE ROUTING
ZONE
173
205
141.5
67.5
135
Ø16
108
375
209
120
110
Fig.19
Fig.20
