43
ACCESSORIES

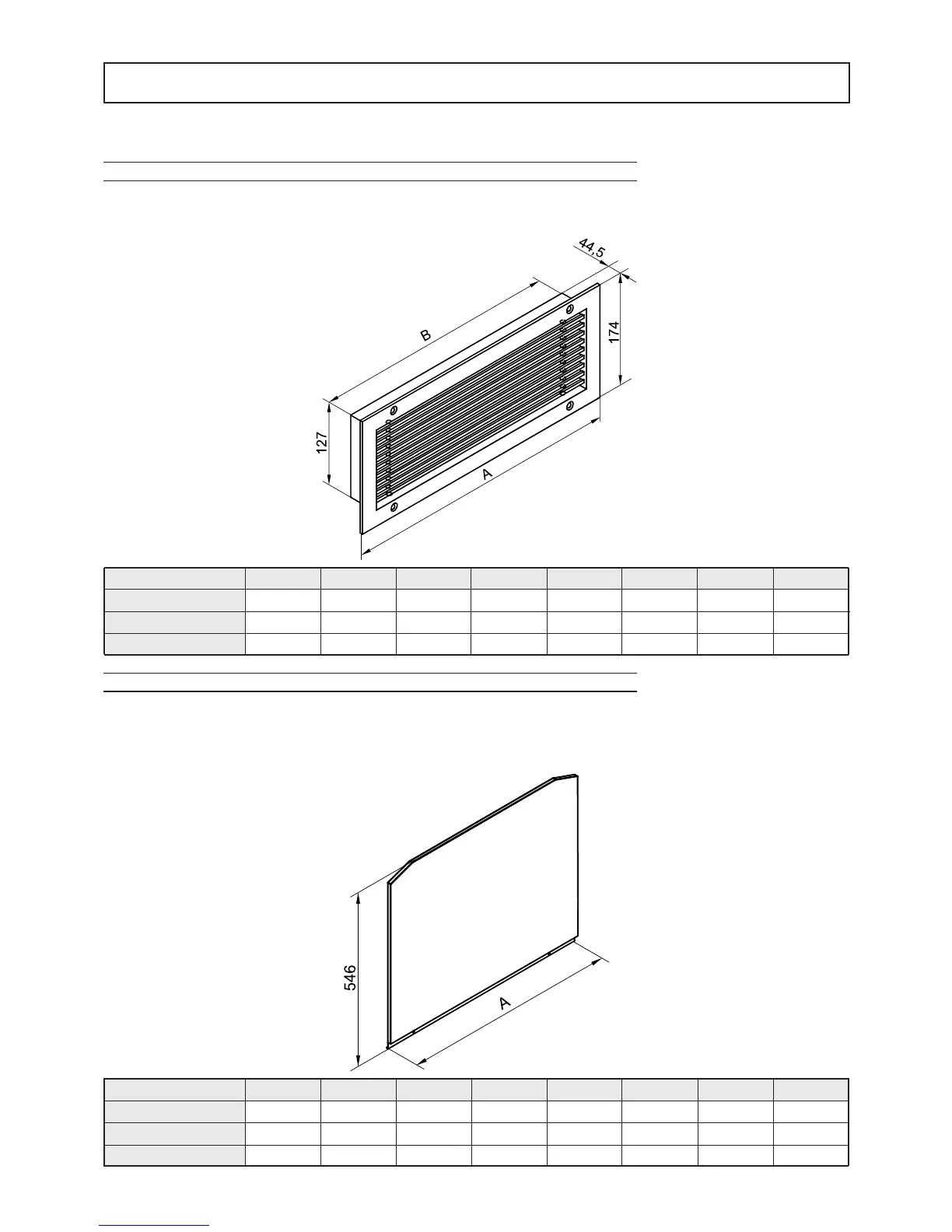

OVERALL DIMENSIONS OF REAR CLOSING PANEL (PC-F)
This is made of painted sheet metal and can be used to close the rear part of the convector fan if visible. It is obli-
gatory to mount this accessory if the appliance is installed away from the wall to prevent access to live parts, as
established by the reference standards in merit.
UNIT MODEL
15 20 30 40 60 80 100 120
A (mm)
671 671 921 921 1171 1171 1421 1421
Accessory model
PC-F1 PC-F1 PC-F2 PC-F2 PC-F3 PC-F3 PC-F4 PC-F4
B (mm)
546 546 546 546 546 546 546 546
OVERALL DIMENSIONS OF INTAKE GRILLE (GA-F)
This is made of anodized aluminium and has a filter that can be easily removed.
UNIT MODEL 15 20 30 40 60 80 100 120
A (mm)
424 424 624 624 824 824 1024 1024
Accessory model
GA-F1 GA-F1 GA-F2 GA-F2 GA-F3 GA-F3 GA-F4 GA-F4
B (mm) 378 378 578 578 778 778 978 978
Fig.31
Fig.32
