41
ACCESSORIES
UNIT MODEL 15 20 30 40 60 80 100 120
A (mm)
390 390 590 590 790 790 990 990
Accessory model
PAD-F1 PAD-F1 PAD-F2 PAD-F2 PAD-F3 PAD-F3 PAD-F4 PAD-F4

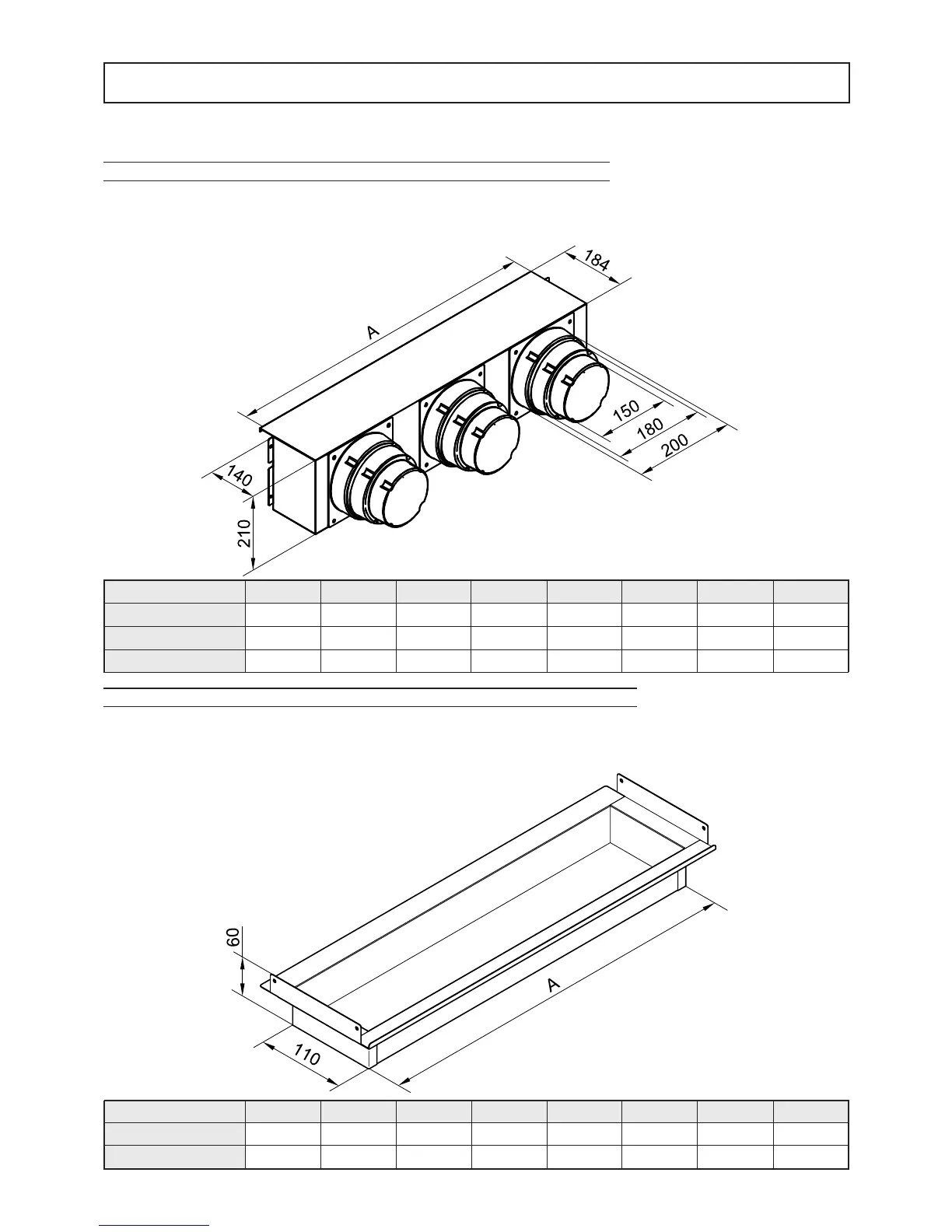

OVERALL DIMENSIONS OF STRAIGHT INTAKE FLANGE (PAD-F)
Made of galvanized sheet metal, this is used to convey the air in vertical or horizontal built-in installations.
UNIT MODEL 15 20 30 40 60 80 100 120
Accessory model
PM-F1 PM-F1 PM-F2 PM-F2 PM-F3 PM-F3 PM-F4 PM-F4
A(mm)
392 392 642 642 892 892 1142 1142
N° circular flanges 11223344
OVERALL DIMENSIONS OF DELIVERY PLENUM (PM-F)
Made of galvanized sheet metal and insulated on the inside to prevent heat bridges, meanwhile reducing the noise
level produced. It is equipped with plastic flanges to join circular section channels.
Fig.27
Fig.28
