42
ACCESSORIES

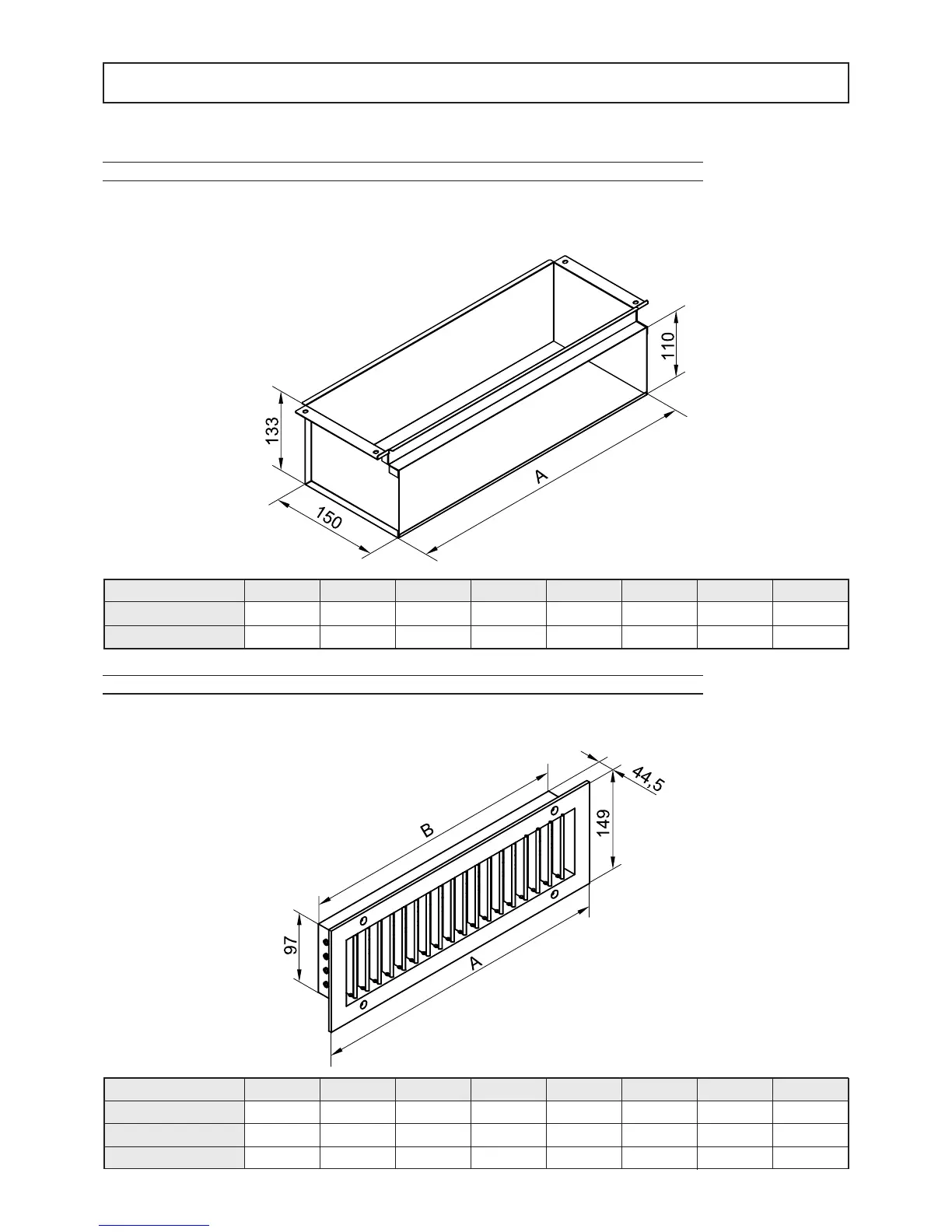

OVERALL DIMENSIONS OF DELIVERY GRILLE (GM-F)
This is made of anodized aluminium and is complete with positionable vertical and horizontal fins.
UNIT MODEL 15 20 30 40 60 80 100 120
Accessory model
GM-F1 GM-F1 GM-F2 GM-F2 GM-F3 GM-F3 GM-F4 GM-F4
A (mm)
424 424 624 624 824 824 1024 1024
B (mm) 378 378 578 578 778 778 978 978
UNIT MODEL 15 20 30 40 60 80 100 120
A(mm)
392 392 592 592 792 792 992 992
Accessory model
FAP-F1 FAP-F1 FAP-F2 FAP-F2 FAP-F3 FAP-F3 FAP-F4 FAP-F4
OVERALL DIMENSIONS OF PERPENDICULAR INTAKE FLANGE (FAP-F)
Made of galvanized sheet metal, this is used to convey the air in vertical or horizontal built-in installations.
Fig.29
Fig.30
