Festo CMSX Series - Curdef - Interpolation Points

Value range Description
25:1
33:1
50:1
inverse equal-percentage characteristic curve
userdef user-defined characteristic curve
Tab. 15

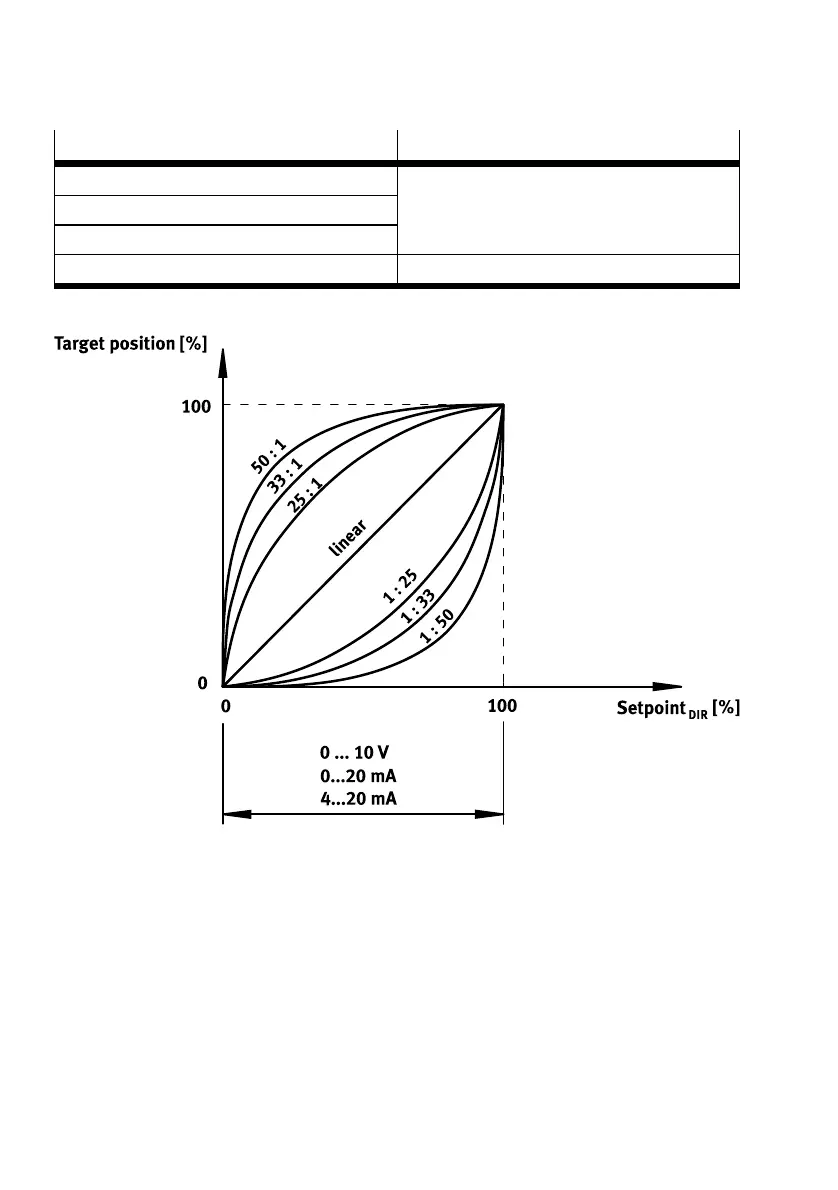

Fig. 21 Setpoint characteristic curves
9.4.2.2 CurDef - Interpolation points
With these parameters, user-defined setpoint value characteristic curves can be defined via 21 inter-
polation points. The interpolation points are distributed equidistantly over the setpoint range from 0
to100%. The distance between the individual interpolation points is5%. A setpoint position (setting
range 0 to100%) can be assigned to every interpolation point. The setpoint values of the interpola-
tion points can only be selected in ascending order.
