4 Service
Contact your regional Festo contact person if you have technical questions èwww.festo.com.
5 Product overview
5.1 Constructive design
CMSX-P-S-...
1
Housing cover
2
Inspection window for LCD display
3
Housing screws
4
Blanking plug
5
Cable entry with cable connector for electric-
al connecting cable
6
Mounting thread for mounting adapter
7
Shaft
8
Mechanical coupling
9
Base plate
10
Housing
11
Pneumatic ports (G1/8)
12
Earth terminal

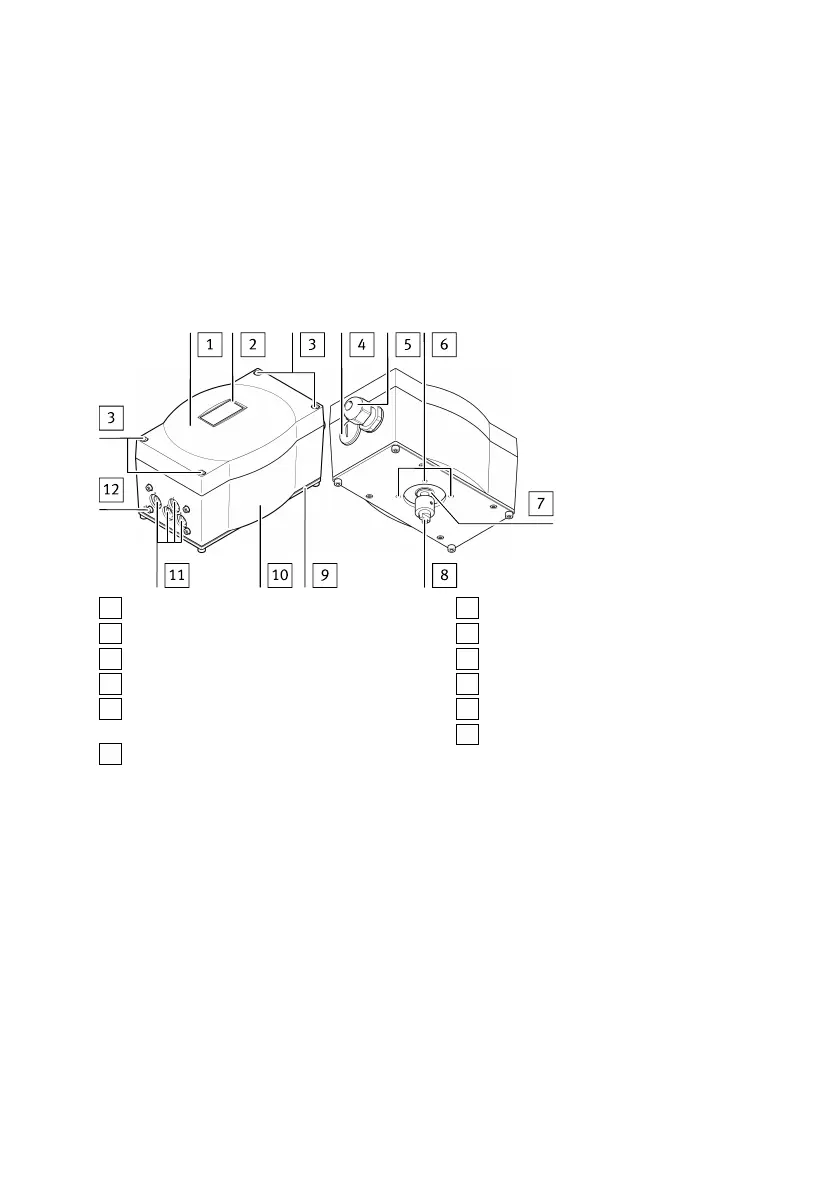

Fig. 1 Product design CMSX-P-S-...
