CMSX-P-SE-...
1
Housing cover
2
Inspection window for LCD display
3
Housing screws
4
Cable entry with cable fitting for external
path/angle sensor
5
Cable entry with cable connector for electric-
al connecting cable
6
Mounting thread for mounting adapter
7
Base plate
8
Housing
9
Pneumatic ports (G1/8)
10
Earth terminal

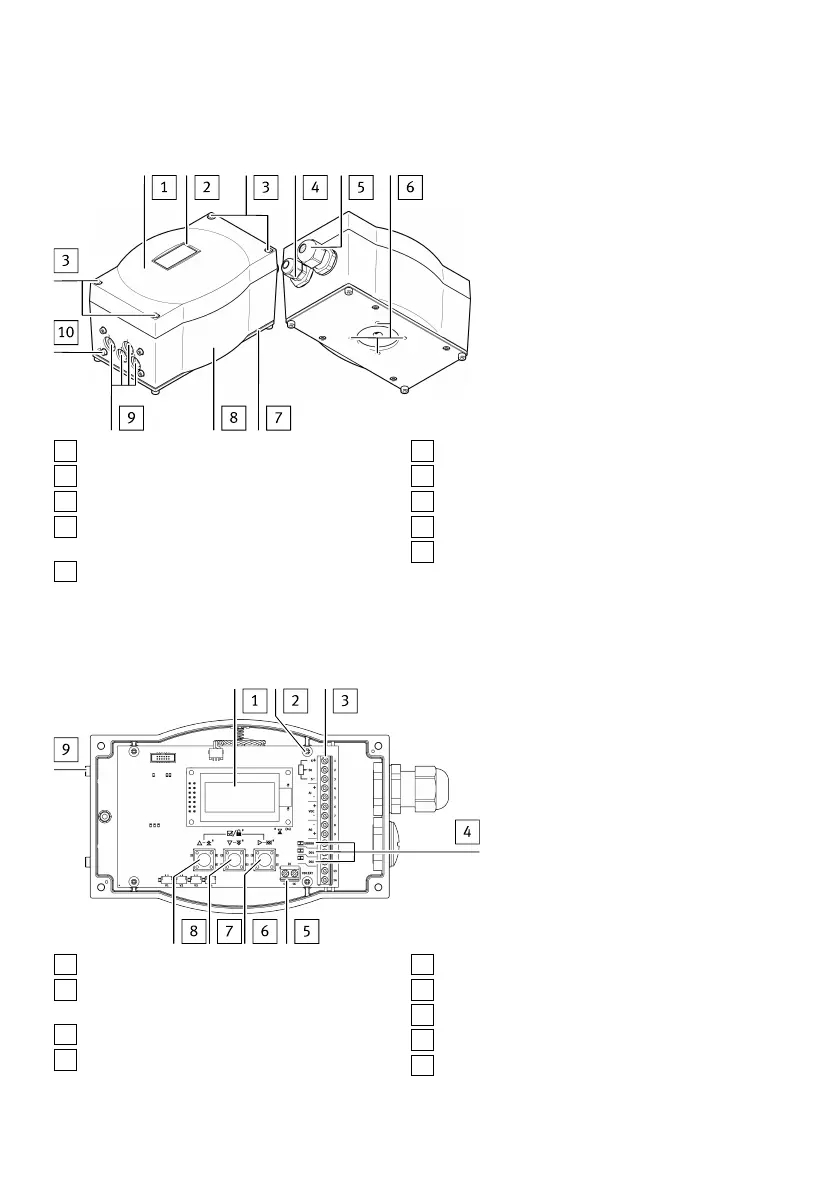

Fig. 2 Product design CMSX-P-SE-...
Operating elements and connections in the device – example: CMSX-P-SE-...
1
LCD display
2
Connection of shield of external displace-
ment encoder
3
Terminal strip 1 (pin 1 ... 14)
4
Digital output LEDs
5
Terminal strip 2 (pin 15 ... 16)
6
Set pushbutton
7
Sub pushbutton
8
Add pushbutton
9
Earth terminal
Fig. 3 Operating elements and connections
Product overview
