Festo CMSX Series - DI-Fct - Digital Input Function

Value range Description
rising The position feedback is incremented with
increasing actual position (factory setting)
falling The position feedback is incremented with falling
actual position
Tab. 33

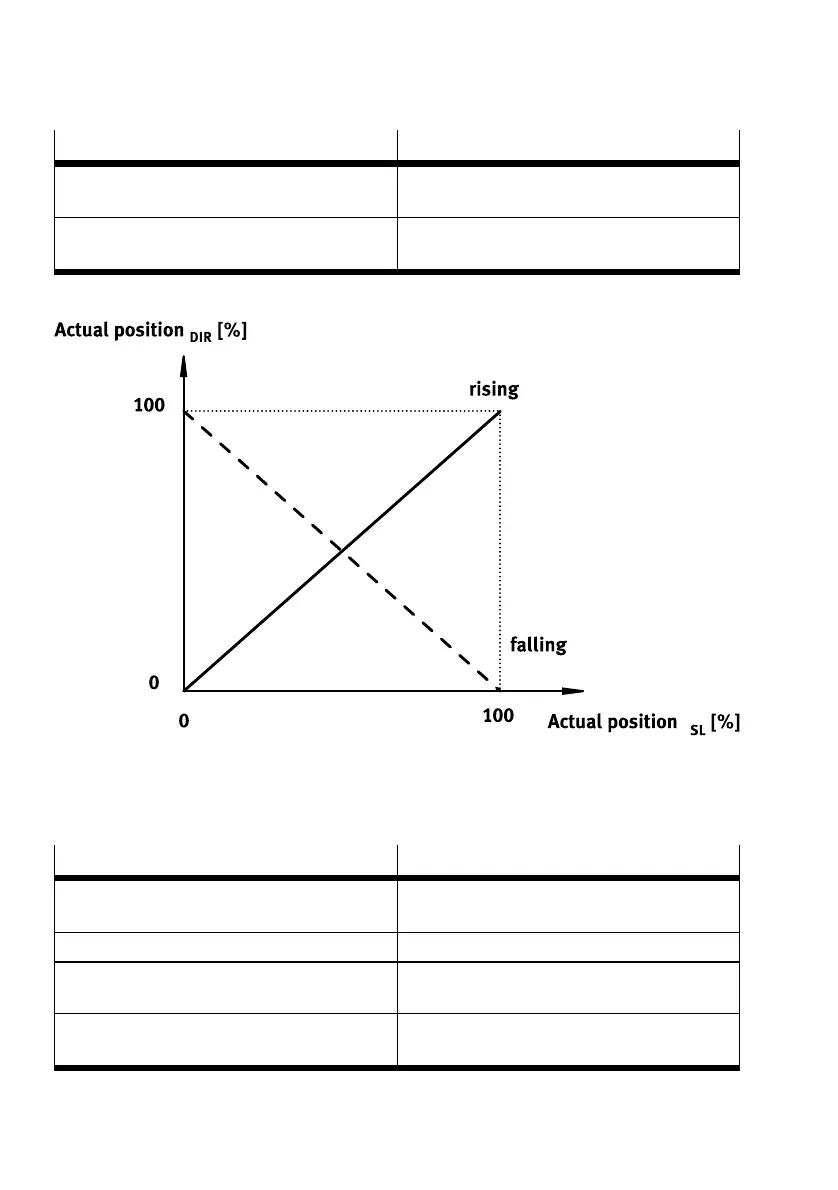

Fig. 28 Position feedback direction
9.4.3.7 DI-Fct - Digital input function
This parameter is used to set the function to be performed when the digital input is activated.
Value range Description
inactiv Digital input function deactivated (factory set-
ting)
stop Pneumatic outputs 2 and 4 are closed.
exhaust Exhausting pneumatic output 2 and pressurising
pneumatic input 4
pressur Pressurising pneumatic output 2 and exhausting
pneumatic input 4
Commissioning
44 Festo — CMSX-...-C-U-F1-... — 2019-09d
