Festo CPX-FB11 - Parameterisation with Rsnetworx with Standard EDS

2. Commissioning
2−45
Festo P.BE−CPX−FB11−EN en 0503b
2.3.2 Parameterisation with RSNetWorx with standard EDS
With RSNetWorx, you can carry out parameterisation with the
aid of the Parameters" register card of the relevant DeviceNet
slave.
The prerequisite is that the EDS file of the relevant DeviceNet
slave is contained in the EDS library (see section 2.2.2).

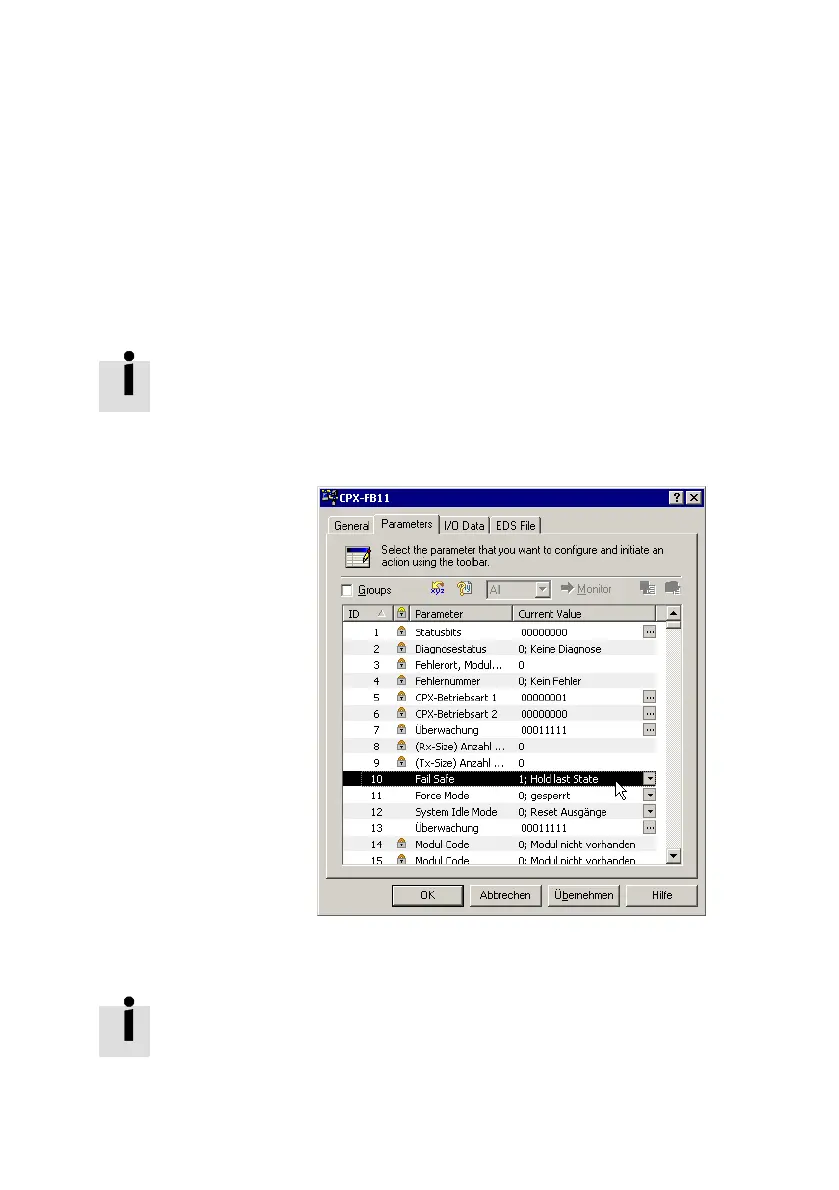

The following diagram shows the Parameters" register of the
CPX terminal:
Fig.2/17: Parameterisation with standard EDS
The settings saved in the project are displayed in offline
mode.
