© Festo Didactic 746310 31

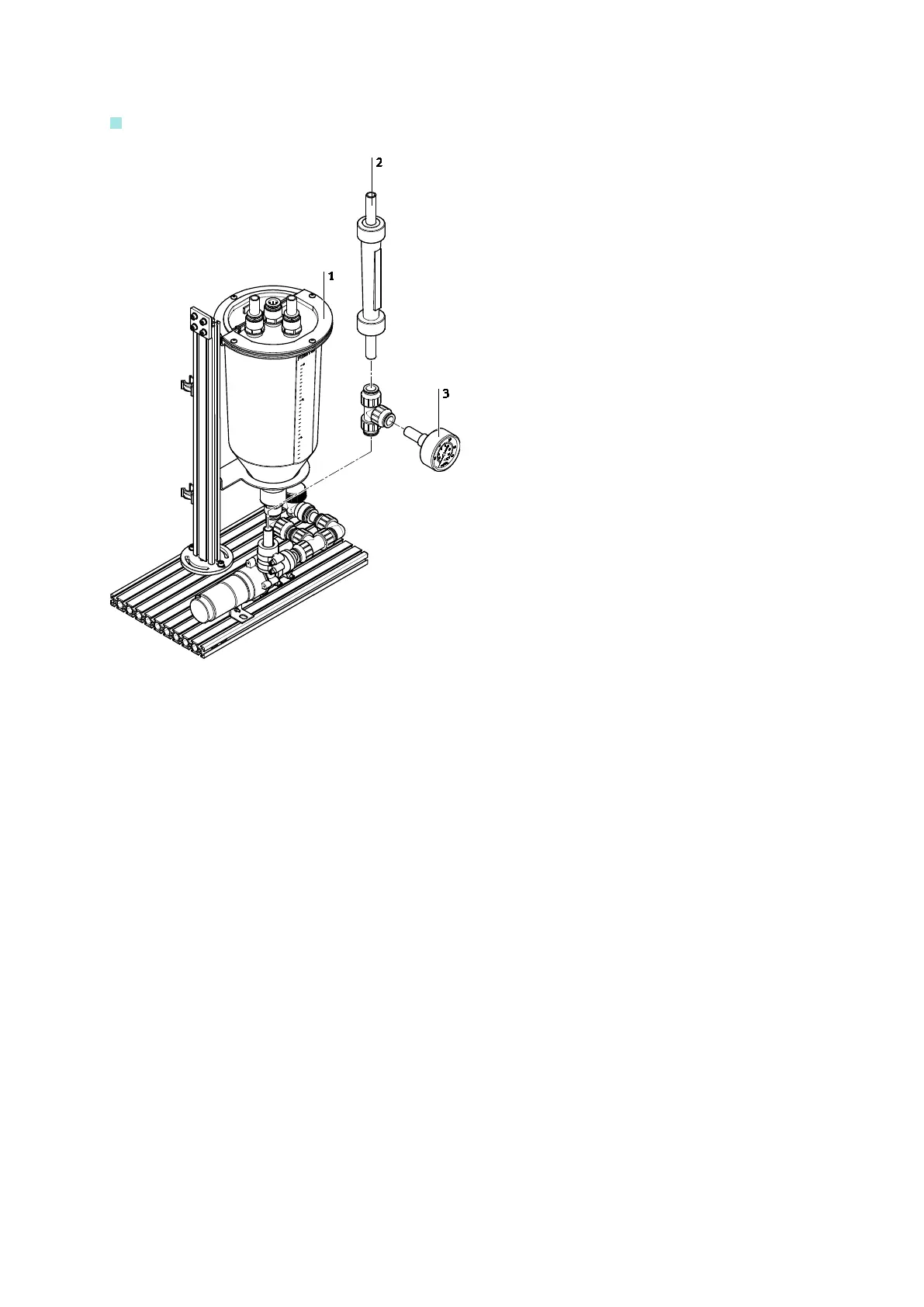

Assembly step 1
1: Profile plate, pump, pipes, connectors, manual valves and lower tank
2: Flow sensor, variable area principle (rotameter)
3: Pressure gauge
