2. Fitting
2−8
Festo P.BE−MTR−DCI−IO−EN en 0606b
In order to fit Festo axes e.g. type DMES−... or type DGE−...
axially, you will require couplings and coupling housings as
accessories. The motor unit is connected to the axis by means
of a clamp in the coupling housing. Additional motor flanges
are not therefore necessary. Further information can be found
in appendix
A.2 and in the operating instructions for the axis.
25°
25°
50°
M3x6(6)
dia.32
32°
M4x10(4x)
M3x10(4x)
dia.32 dia.36
4x90°
4x90°
28°
M5x10(4X)
4X90°
45°
dia.50
M5x10(4x)
4x90°
30°
dia.40
MTR−DCI−32...
MTR−DCI−42...
MTR−DCI−52...
MTR−DCI−62...

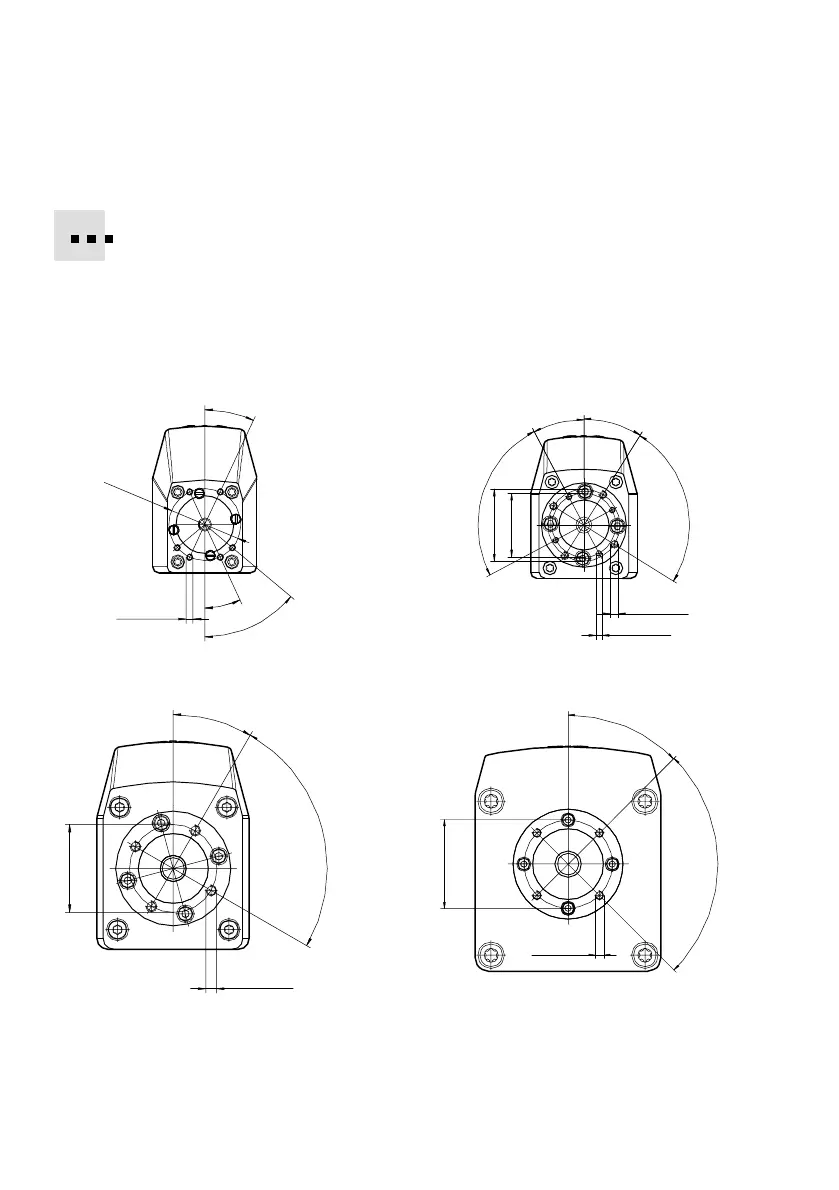

Fig.2/2: Fastening the drive by means of the front threads (direct fastening)
