3. Installation
3−4
Festo P.BE−MTR−DCI−IO−EN en 0606b
1 Power supply
2 I/O control
3 Reference switch
4 Serial interface
1
2
3
4

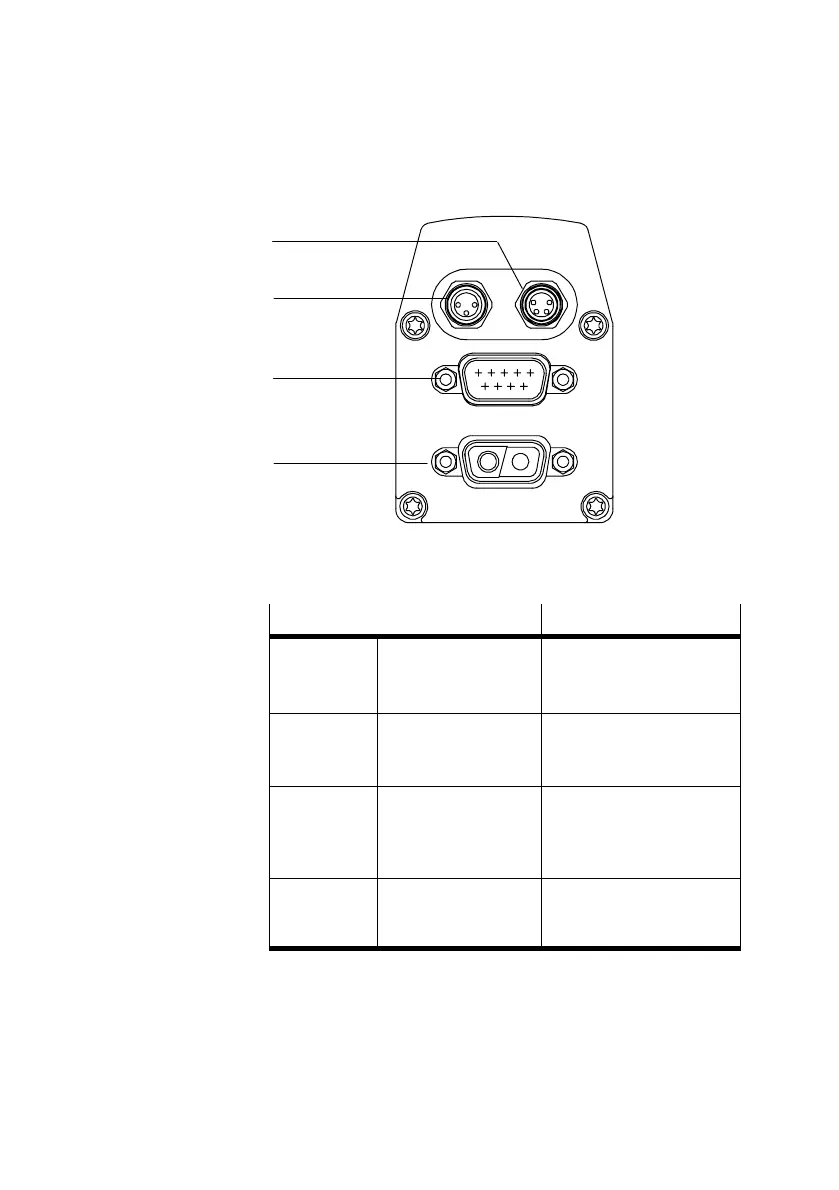

Fig.3/1: Connections on the MTR−DCI
Connection on the MTR−DCI
Manual
Power supply  D−Sub, 2−pin
 Plug
Operating voltage connec
tion with 2 high−current
contacts
Controller  D−Sub, 9−pin
 With type
MTR−DCI−...IO: Plug
Interface for connecting
any PLC controller
Reference
switch
 M8x1, 3−pin
 Socket
Sensor input for switch
type normally open contact
in the design PNP, e.g. type
SMT−8F
Serial
interface
 M8x1, 4−pin
 Socket
RS232 interface for
parametrizing, commis
sioning and diagnosing
Tab.3/1: Overview of connections
