Assembly
5.2 Mounting sensor on plate
Product variant SPAE-...-F

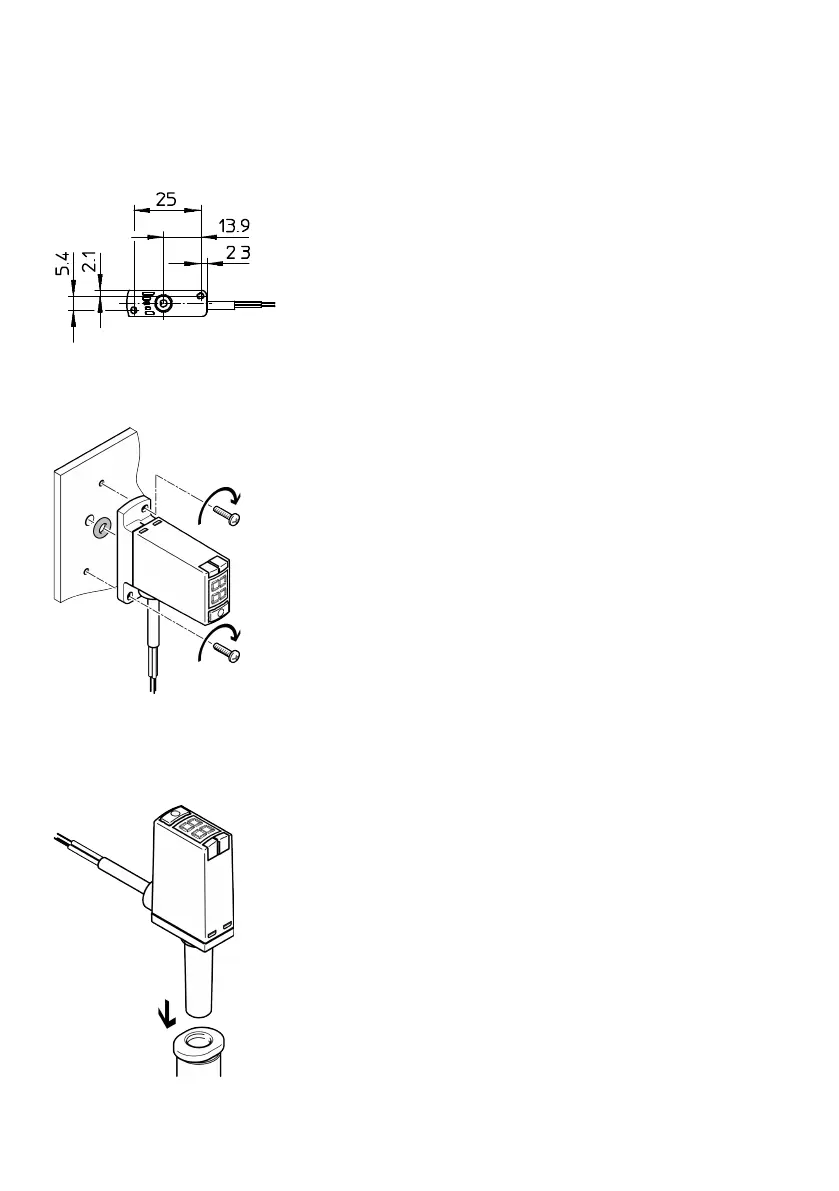

Fig. 4: Flange hole pattern SPAE-…-F
1)
1)
Pressure port hole: maximum Æ 2 mm
– Check that the sealing ring is correctly seated.
M2
max. 0,3 Nm
Fig. 5: SPAE-...-F
5.3
Mounting sensor on QS plug connector
Product variant SPAE-...-S...
• Insert the sensor into the QS plug connector to the stop.
Fig. 6: SPAE-...-S...
