Festo SPAE - 3 Additional information; 4 Product overview; 4.1 Product overview

Festo — SPAE — 2022-12c
Product overview
5
Conditions of Acceptability
For use only in or with complete equipment where the acceptability of the combination is determined
by UL LLC. When installed in an end-product, consideration must be given to the following:
–
This component has been judged on the basis of the creepage and clearances required in the
indicated Standards, which would cover the component itself if submitted for Listing: CAN/CSA 22.2
No. 61010-1-12 3rd Ed., UL 61010-1 3rd Ed.
–
The end-product shall consider that: The enclosure does not serve as a fire/electrical/mechanical
enclosure.
–
The output connectors are: Not investigated for field wiring.
– The unit is considered acceptable for use in a max ambient of: 50°C.
3 Additional information
– Contact the regional Festo contact if you have technical problems
è
www.festo.com.
–
Accessories and spare parts
è
www.festo.com/catalogue.
4
Product overview
4.1 Product overview
2 3 4
56
1

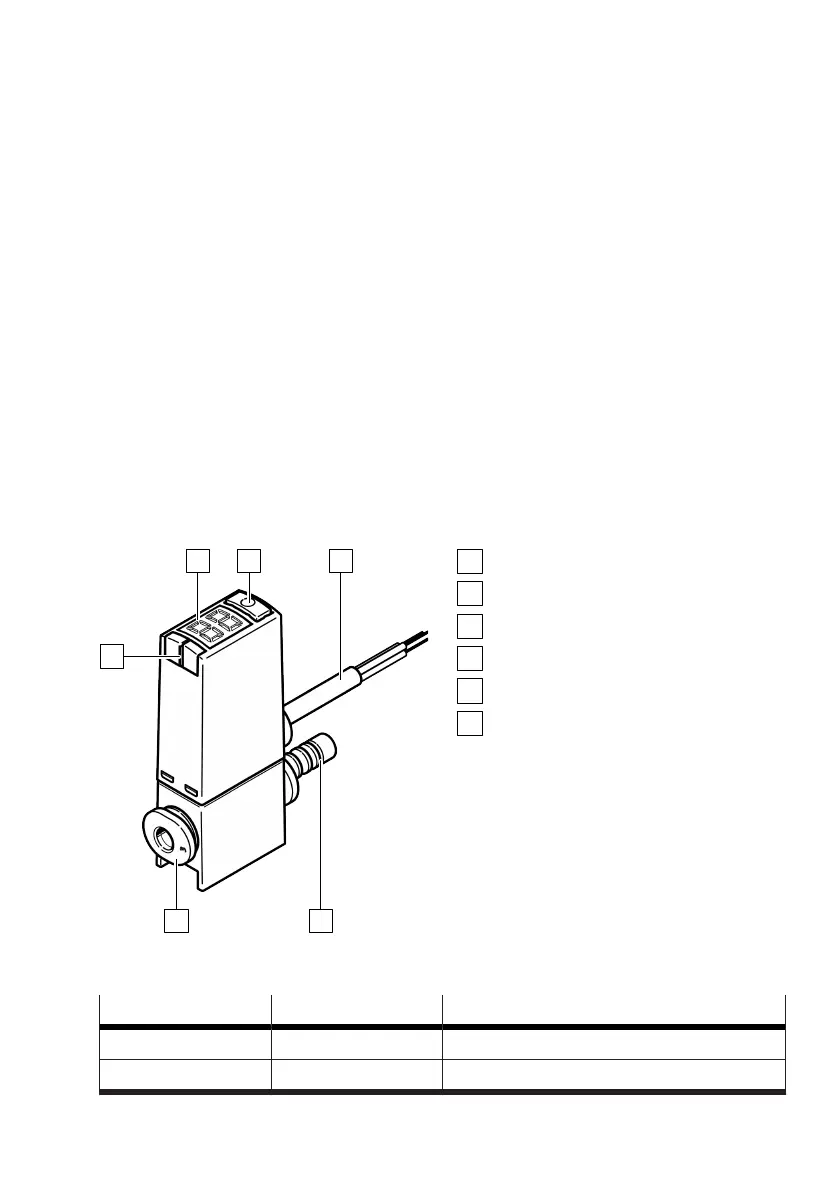

Fig. 1: Design
1
LEDs
2
Display
3
Operating key
4
Electrical connection
5
Blanking plug, dependent on type
6
Pneumatic port, design dependent on type
4.1.1
Display components
LED Display Meaning
Both LEDs on Continuously on RUN mode: switching output switched
Both LEDs off Continuously on RUN mode: switching output not switched
