Assembly
9
5 Assembly
NOTICE
An unfavourable mounting position may impair the function of the product.
• When selecting the mounting position, make sure that condensate from the compressed air lines
cannot accumulate in the sensor.
5.1 Mounting sensor on mounting clip
Product variant SPAE-...-Q... and mounting clip SAMH

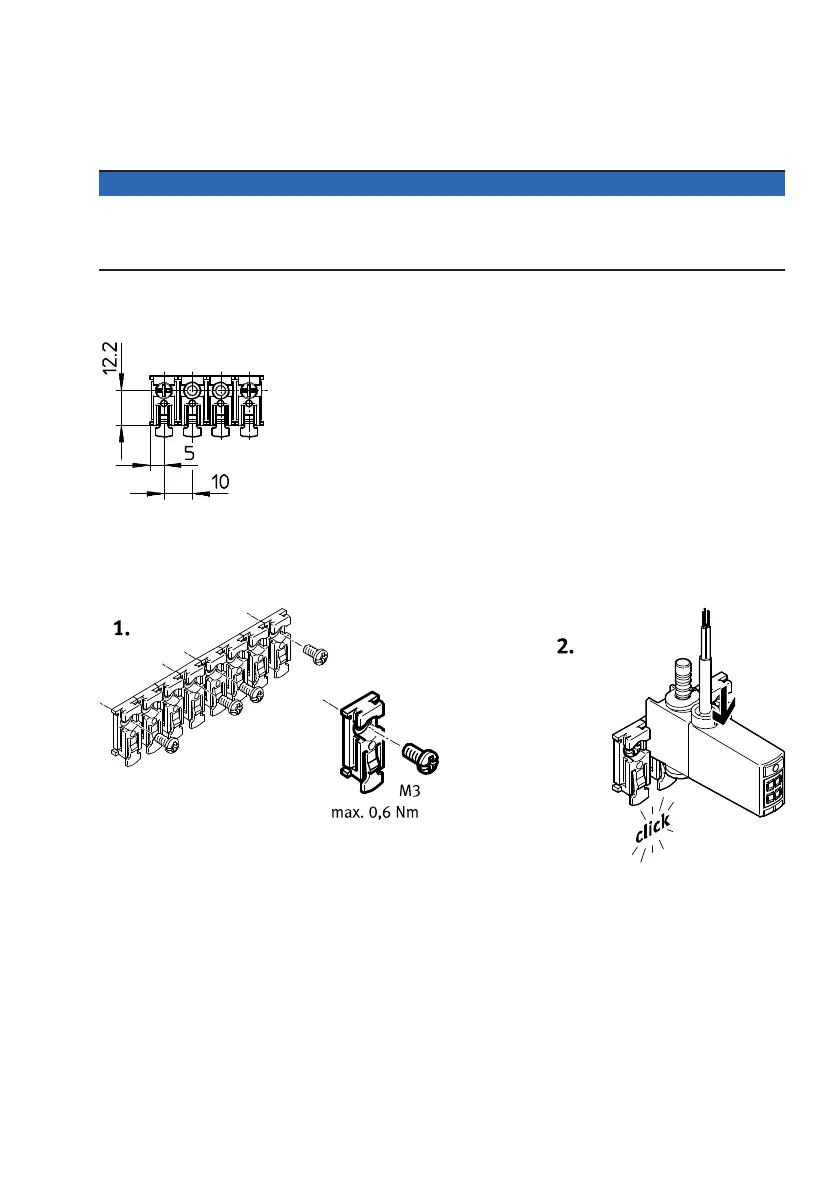

Fig. 2: Mounting clip SAMH
1.
Slide the sensor into the mounting clip with the cable outlet at the top or with the cable outlet at
the bottom.
2.
If the tubing is on one side, close the unused pneumatic port with a blanking plug.
Fig. 3: SPAE-...-Q...
