FG Wilson PowerWizard 1.1+ - Page 23

23
PowerWizard 1.1,1.1+
CAN 1
133 FT Maximum

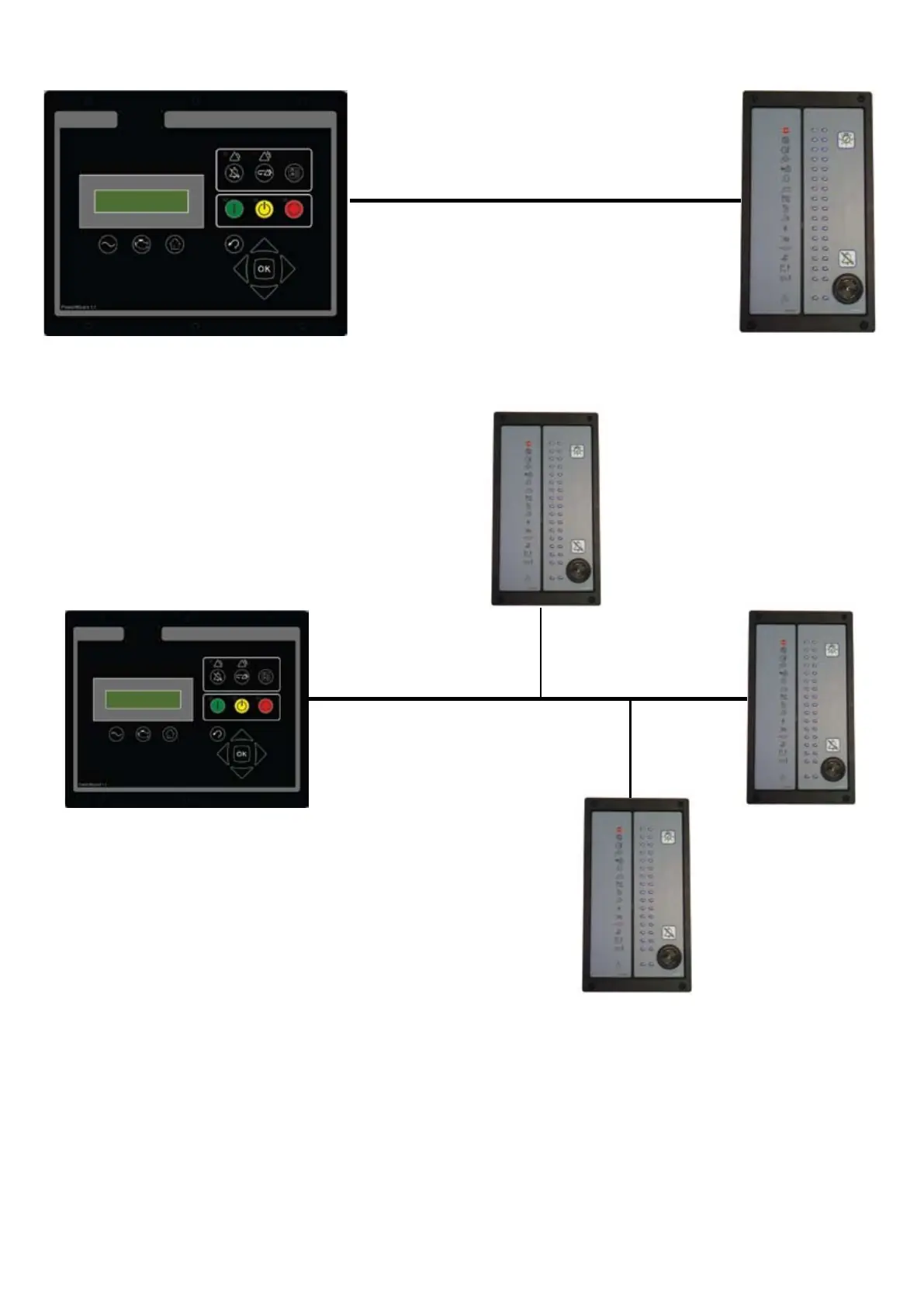

Figure 18: PowerWizard 1.1,1.1+ and Annunciator Connection
PowerWizard 2.1: Supports one Annunciator module using CAN1 and up to three Annunciators using CAN2
PowerWizard 2.1
CAN 2
800 ft Maximum
Annunciator 1
Annunciator 2
Annunciator 3
3 ft Maximum
Figure 19: Example illustration of Accessory Data Link Modules and Wire Lengths
