FiberHome AN5506-04-FS User Manual

4
Web Configuration Guide
4.4.5
ACL Configuration
Users
can configure ACL (Access Control List) to filter designated
data packets using the matching rules. After the ACL rule is enabled,
the corresponding port will filter the packets as per the configured
ACL rules.
1. Select Security in the navigation bar and select ACL Settings
in the left link bar to open the ACL configuration tab, as shown
in Figure 4.32.

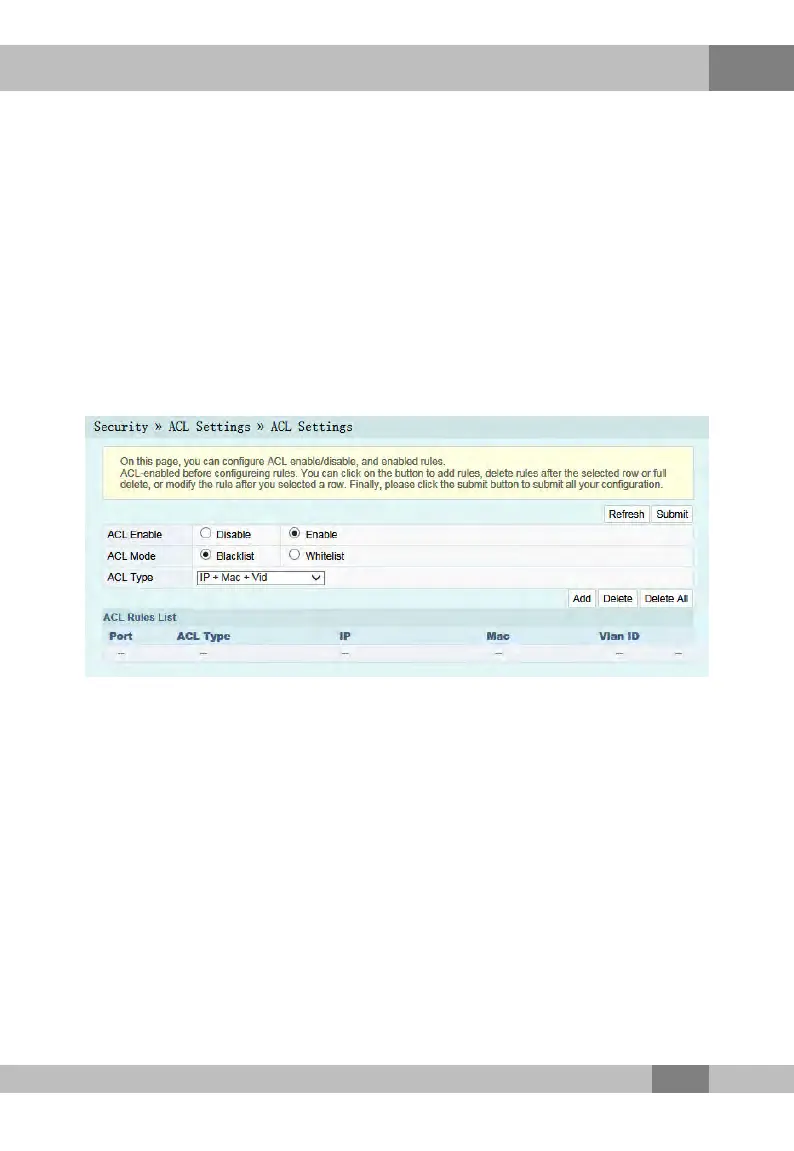

Figure
4.32 ACL Configuration
2
. Select Enable and set ACL Mode and ACL Type. Then click
Add to open the ACL rule list configuration tab, as shown in
Figure 4.33.
107

FiberHome AN5506-04-FS Specifications

General

Type	GPON ONT
Power Supply	12V DC, 1A
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Wi-Fi	2.4 GHz
PON Interface	GPON
Ports	4 x 10/100/1000 Mbps Ethernet, 2 x POTS
