FiberHome AN5506-04-FS User Manual

4
Web Configuration Guide

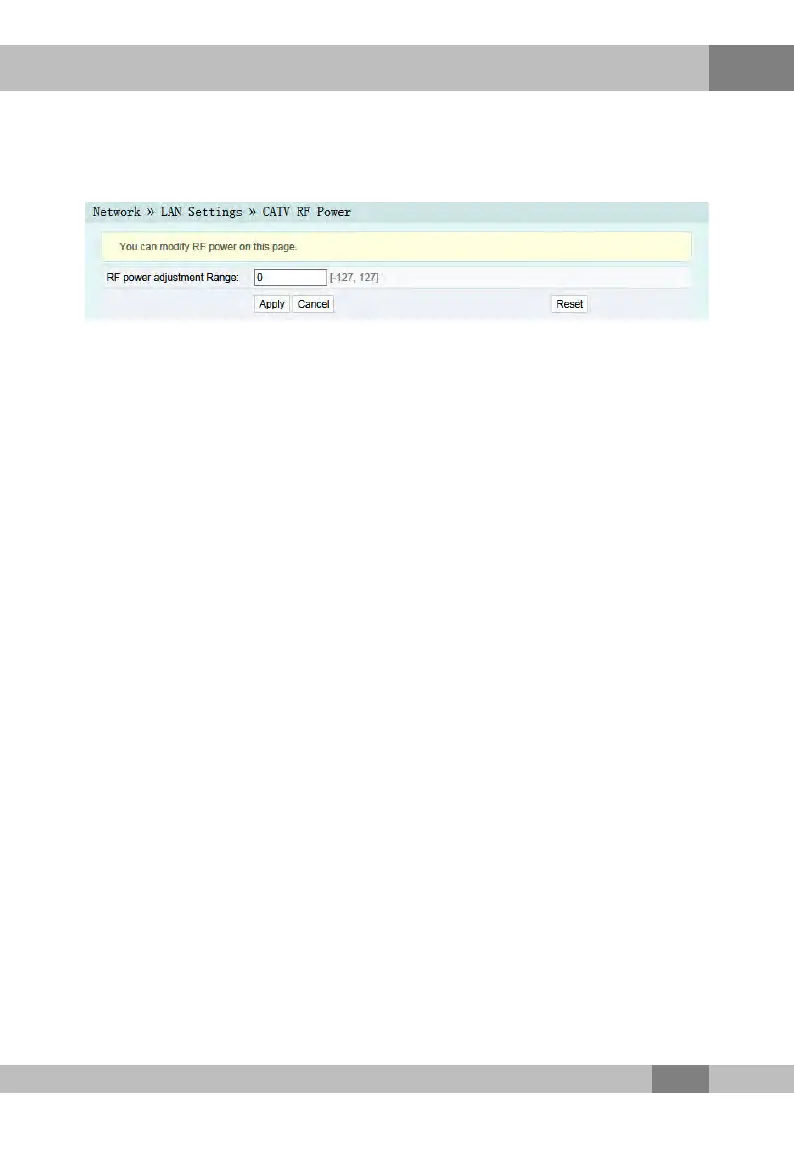

1. Select Network in the navigation bar, and select LAN Settings
→CATV RF Power in the left link bar to open the RF output
level adjustment tab, as shown in Figure 4.14.
Figure
4.14 RF Output Level Adjustment
2
. Enter the RF output level adjustment range. Click Apply to
save and apply the configuration.
3. (Optional) Click Reset to restore to the default RF output level
adjustment range.
4.3.3
Broadband Settings
Select
different WAN connections for different network environment,
or configure corresponding parameters for the selected WAN
connection.
1. Select Network in the navigation bar and select BroadBand
Settings in the left link bar to open the Broadband setting tab,
as shown in Figure 4.15.
79

FiberHome AN5506-04-FS Specifications

General

Type	GPON ONT
Power Supply	12V DC, 1A
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Wi-Fi	2.4 GHz
PON Interface	GPON
Ports	4 x 10/100/1000 Mbps Ethernet, 2 x POTS
