FiberHome AN5506-04-FS User Manual

4
Web Configuration Guide

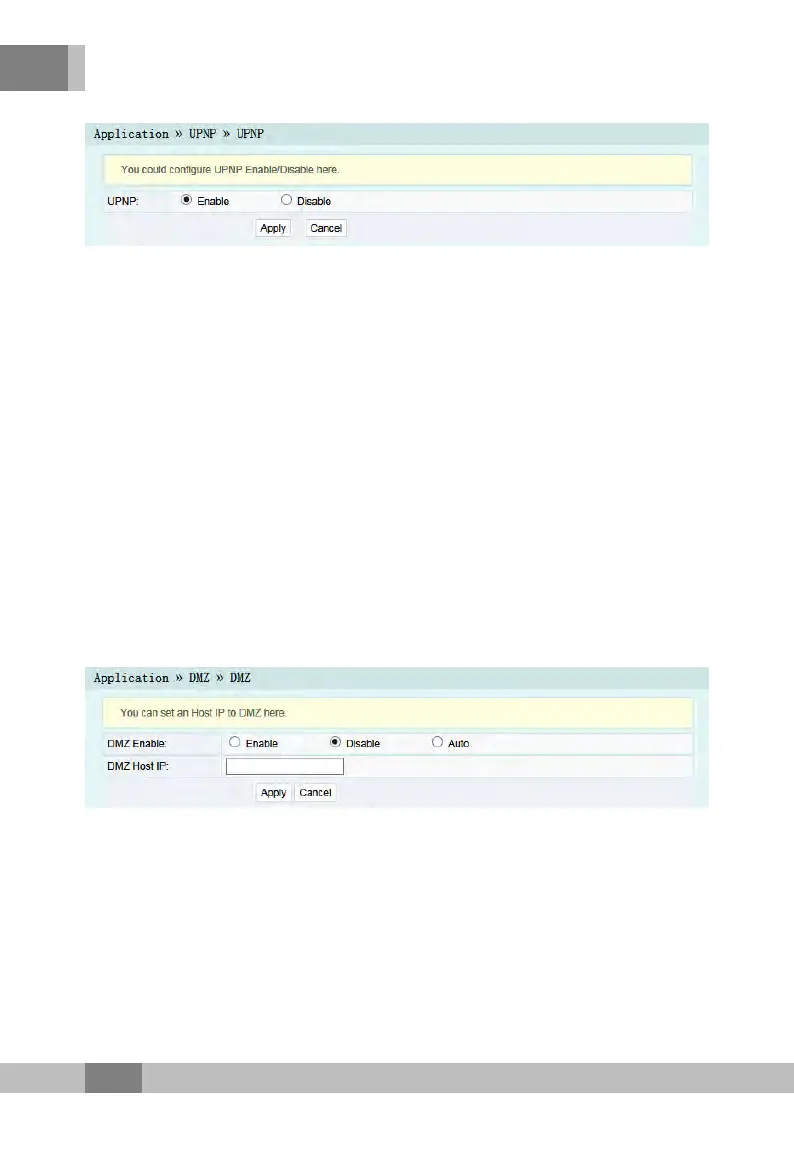

Figure
4.41 UPnP
2
. Select to Enable or Disable the UPnP function as required.
3. Click Apply to save and apply the configuration.
4.5.7
DMZ
When
the ONU is working in the routing mode, users should enable
the DMZ function if a host at the WAN side needs to access a
certain host at the LAN side. The ONU will forward all the IP packets
from the WAN to the designated DMZ host.
1. Select Application in the navigation bar and select DMZ in the
left link bar to open the DMZ configuration tab, as shown in
Figure 4.42.
Figure
4.42 DMZ
2
. Configure relevant parameters according to the requirement.
Table 4.23 describes the parameters.
3. Click Apply to apply and save the configuration.
118

FiberHome AN5506-04-FS Specifications

General

Type	GPON ONT
Power Supply	12V DC, 1A
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Wi-Fi	2.4 GHz
PON Interface	GPON
Ports	4 x 10/100/1000 Mbps Ethernet, 2 x POTS
