4
Web Configuration Guide
4.4.4
WPS
WPS
can automatically set the network name (SSID) and wireless
encryption key for the AN5506-04 Series ONUs and the client end
supporting the Wi-Fi service. Users need only to press down the
WPS button or enter PIN to achieve safe connection. Users need
not remember the long encryption key and are free of the trouble
caused by forgetting the password.

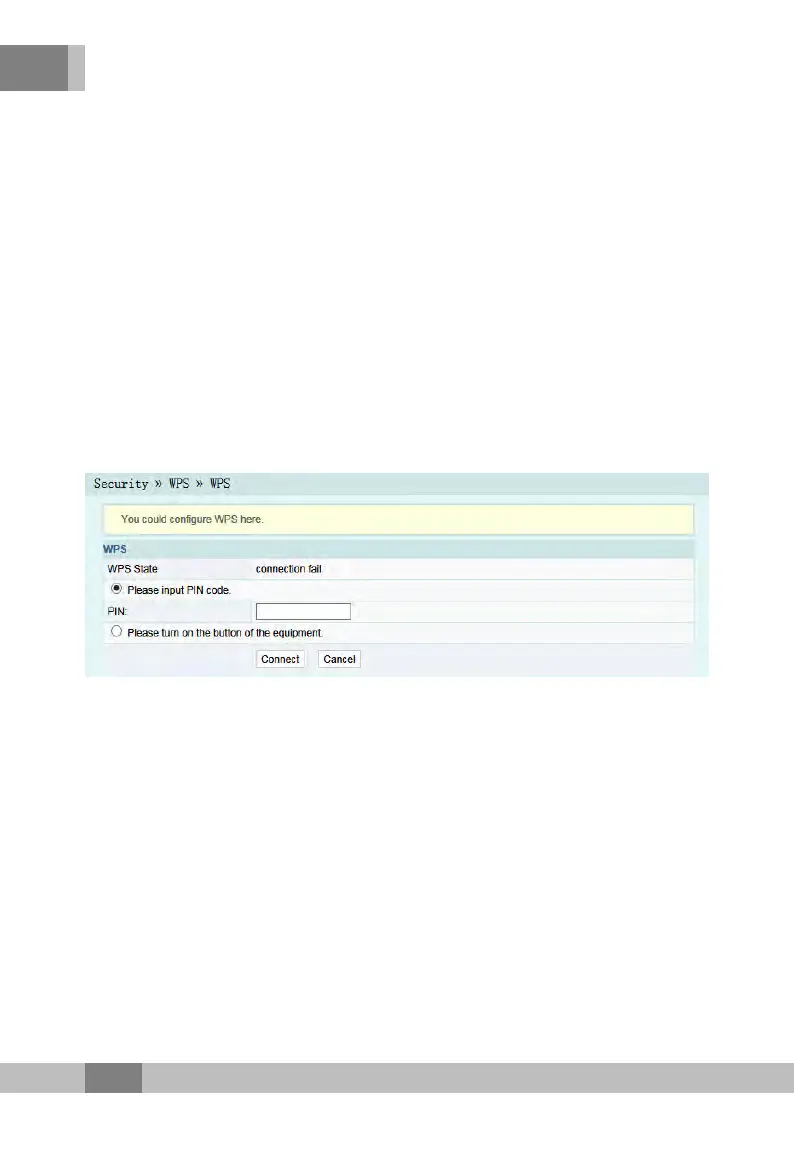

1. Select Security in the navigation bar and select WPS in the left
link bar to open the WPS configuration tab, as shown in Figure
4.31.
Figure
4.31 WPS
2
. Select the WPS connection mode as required.
4
Select Please
input PIN code., and enter the PIN code in
the PIN text box. Then click Connect.
4
Select Please
turn on the button of the equipment and
press down the WPS button on panel at the ONU side.
Then press down the WPS button or the WPS software key
on the client end.
3. Wait until the connection is completed.
106
