FiberHome AN5506-04-FS User Manual

4
Web Configuration Guide

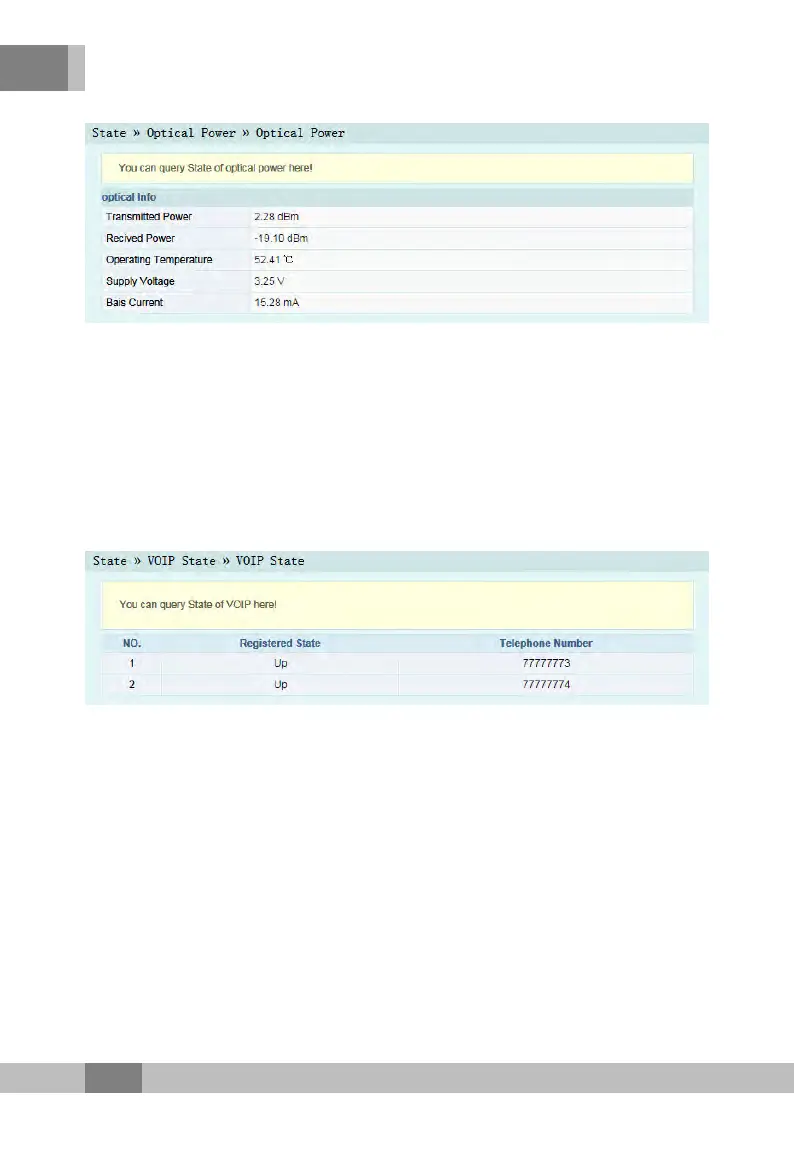

Figure
4.6 Optical Power Status
4.2.5
Voice Status
Select State in
the navigation bar and select VOIP State in the left
link bar to view the information such as the the user status and
phone number. See Figure 4.7.
Figure
4.7 Voice Status
4.2.6
Wireless Network Status
Select State in
the navigation bar. Select Wireless State in the left
link bar to view the information of the wireless network, such as
network mode, band, SSID and wireless packet statistics. See
Figure 4.8.
70

FiberHome AN5506-04-FS Specifications

General

Type	GPON ONT
Power Supply	12V DC, 1A
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Wi-Fi	2.4 GHz
PON Interface	GPON
Ports	4 x 10/100/1000 Mbps Ethernet, 2 x POTS
