FiberHome AN5506-04-FS User Manual

4
Web Configuration Guide
d)

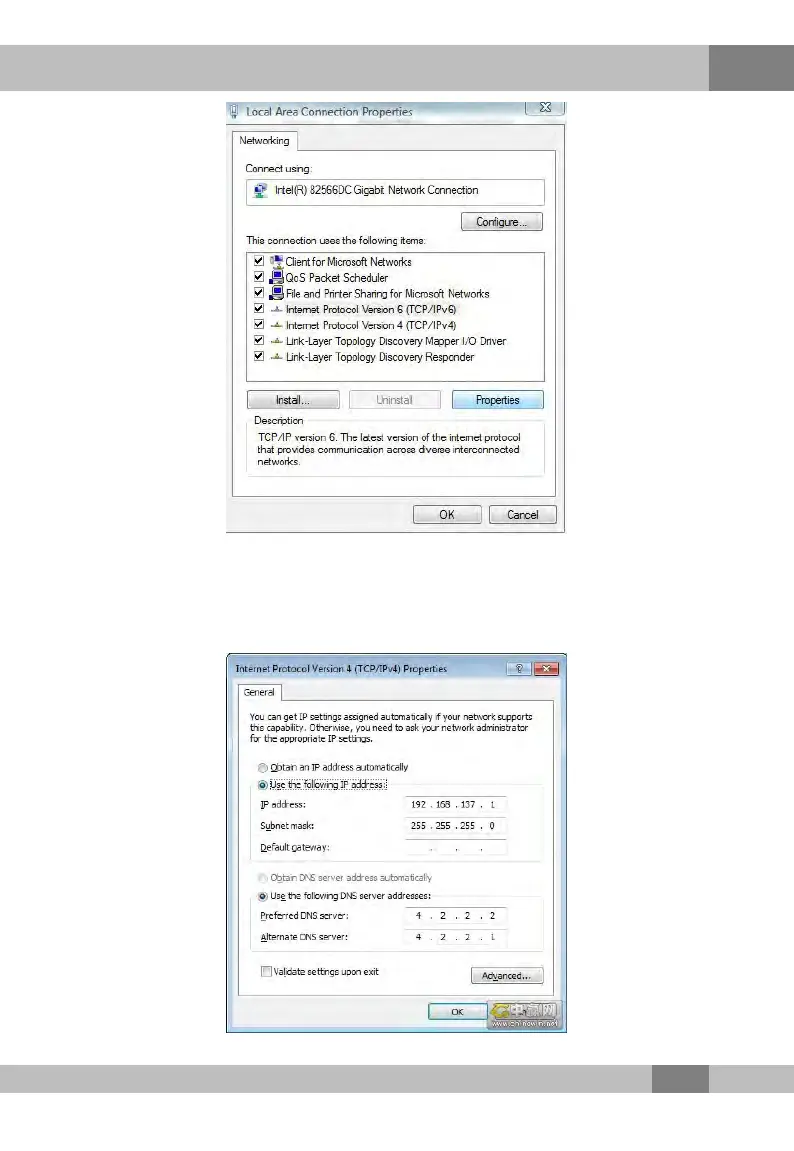

In the Internet Protocol 4 (TCP/IPv4) Properties
dialog box, set the IP address and subnet mask of the
computer. (See Table 4.1 for the detailed values).
63

FiberHome AN5506-04-FS Specifications

General

Type	GPON ONT
Power Supply	12V DC, 1A
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Wi-Fi	2.4 GHz
PON Interface	GPON
Ports	4 x 10/100/1000 Mbps Ethernet, 2 x POTS
