QuickServer Start-up Guide Page 16 of 43

FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com

Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: support@fieldserver.com

5.3 Connecting to the QuickServer

5.3.1 Using the Toolbox application to Allocate the IP address:

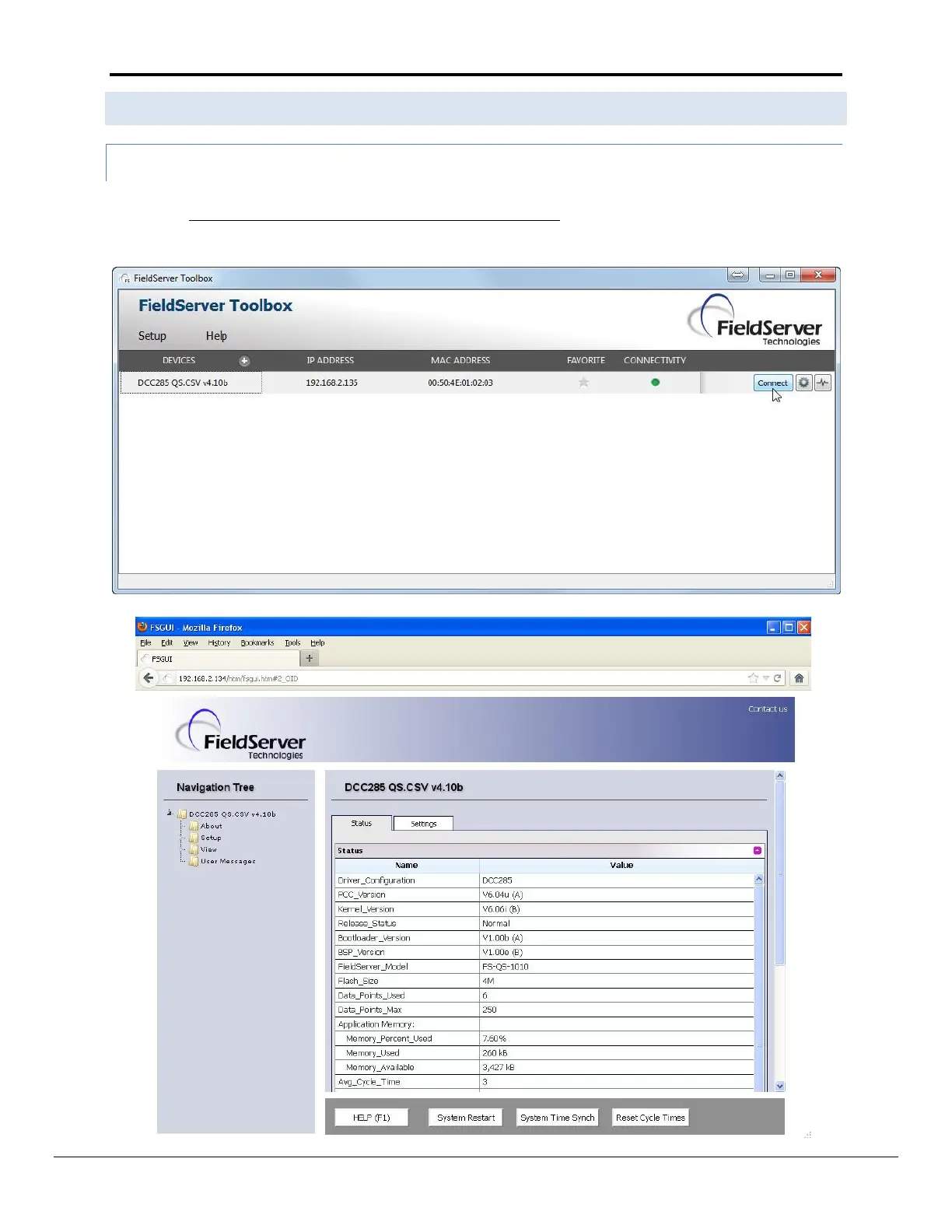

 Install the Toolbox application from the USB drive or get it from our website

http://fieldserver.com/techsupport/utility/downloads.php

 Use the Toolbox application to find the QuickServer, and launch the Web GUI

Main Page
