3 MOUNTING
The following mounting options are available:
 Product comes with tabs for wall or surface mount. These can be snapped off if not required.
 DIN Rail Mounting Bracket - included in the Accessory Kit or ordered separately (Part # FS-8915-35-QS)
3.1 Dimensions

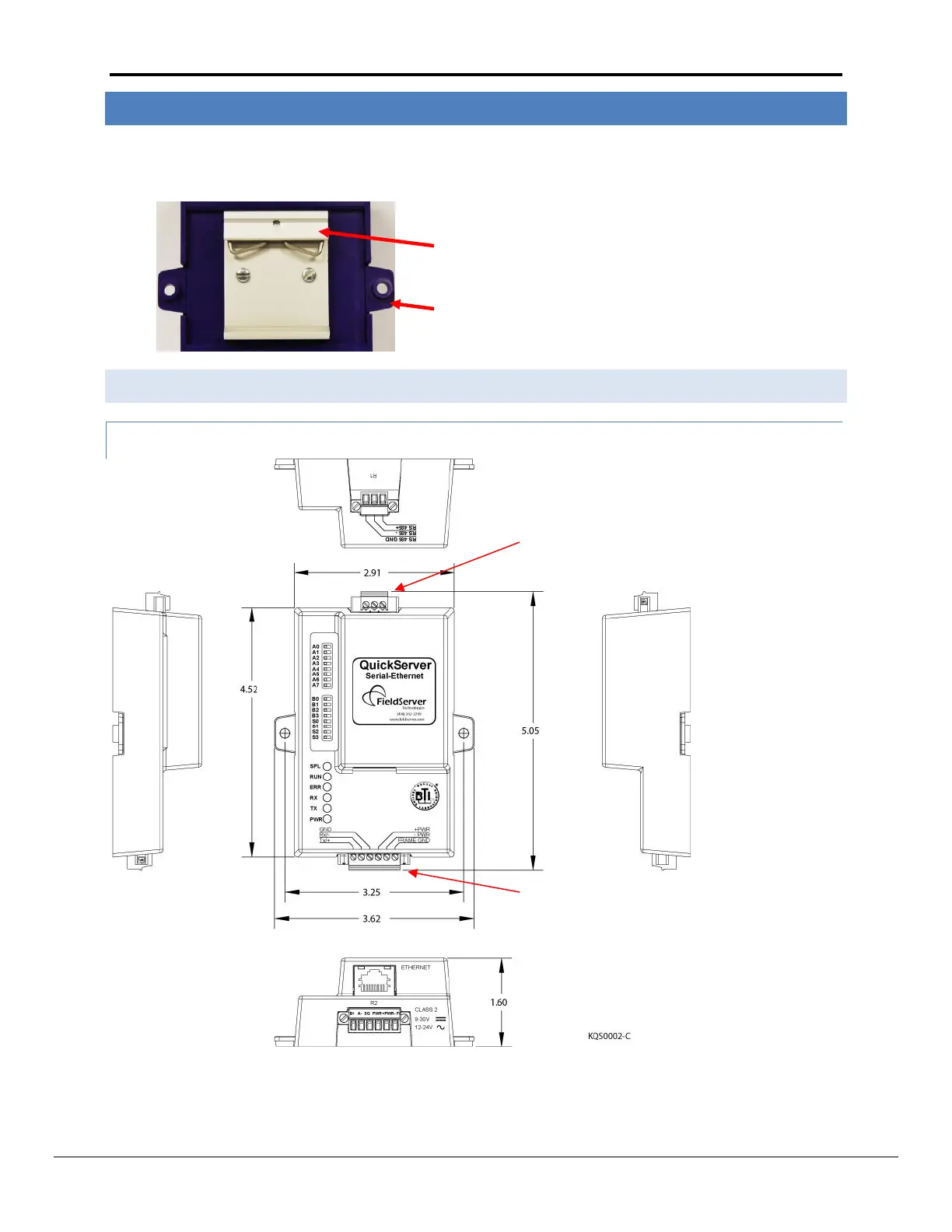

3.1.1 Dimension Drawing FS-QS-1X10-XXXX
R1 Port
R2 Port
Tab
Din Rail
