Fiessler ULVT - Page 24

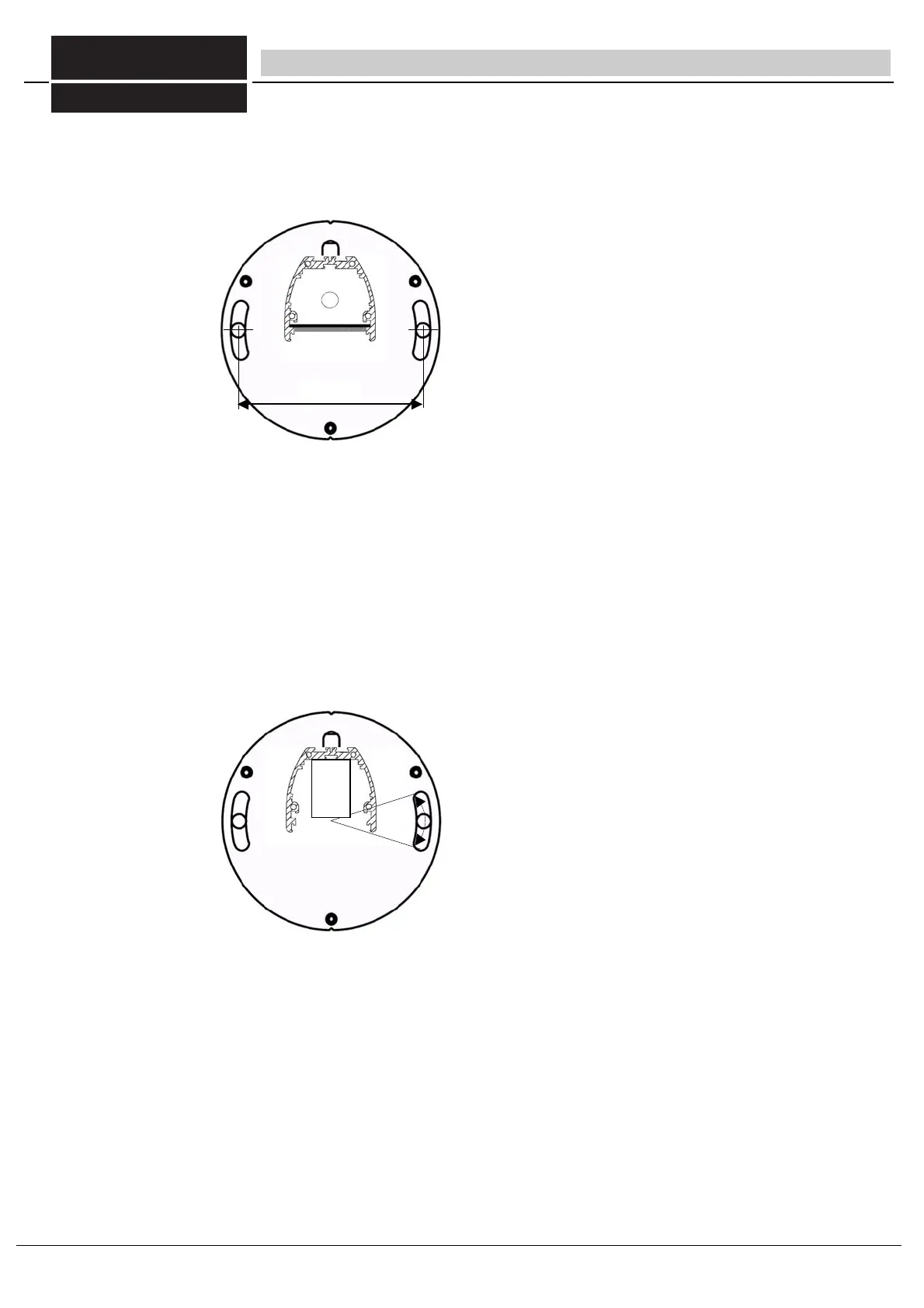

4.4.5.1 dimension drawing : installation of one assembly-column with tilted mirror
4.4.5.2 dimension drawing : installation of the assembly-column with ULVT/BLVT
4 Installation - Dimensions Assembly columns/
fig 24/1 column with tilted mirror
fig 24/2 column assembled wiuth light curtain ULVT/BLVT
During installation of the floor plate , please observe that the
distance between the drilled holes must be 170 mm.
The elongated mounting holes allow to turn the colum with its
floor plate in an angle of 14° to each side.
The three adjustment screws allow a perpendicular adjustment of
the column.
During adjustment of the column please observe that the central
point of the column is exactly correspond to the central point of
the light barrier and to the mirror.
Additional plexiglass front windows are available as option.
Dimensions of ULVT/BLVT with e.g. 2, 3 or 4 beams (Height of the columns including base plate)
ULVT / BLVT 500/2 ---> 960 mm (first beam 400 mm above floor level according to EN 999 / ISO 13855 )
ULVT / BLVT 800/3 ---> 1160 mm ((first beam 300 mm above floor level according to EN 999 / ISO 13855 )
ULVT / BLVT 1100/4 ---> 1460 mm (first beam 300 mm above floor level according to EN 999 / ISO 13855 )
ULVT 500/2R ---> 1000 mm ((first beam 400 mm above floor level according to EN 999 / ISO 13855 )
FIESSLER
E L E K T R O N I K
170mm
28°
1
1
1
3
5
4
2
2
1: Three adjustment screws for adjusting the column
2: Two elongated mounting holes for fastening the baseplate on the
floor and for fine adjustment of the column (max. M12 screws)
3: Cable duct
4: Groove for fastening the light barrier by using the
brackets (brackets are included in delivery)
5: Fastening grooves for fastening the column (without base plate) on
a machine or on the wall.
