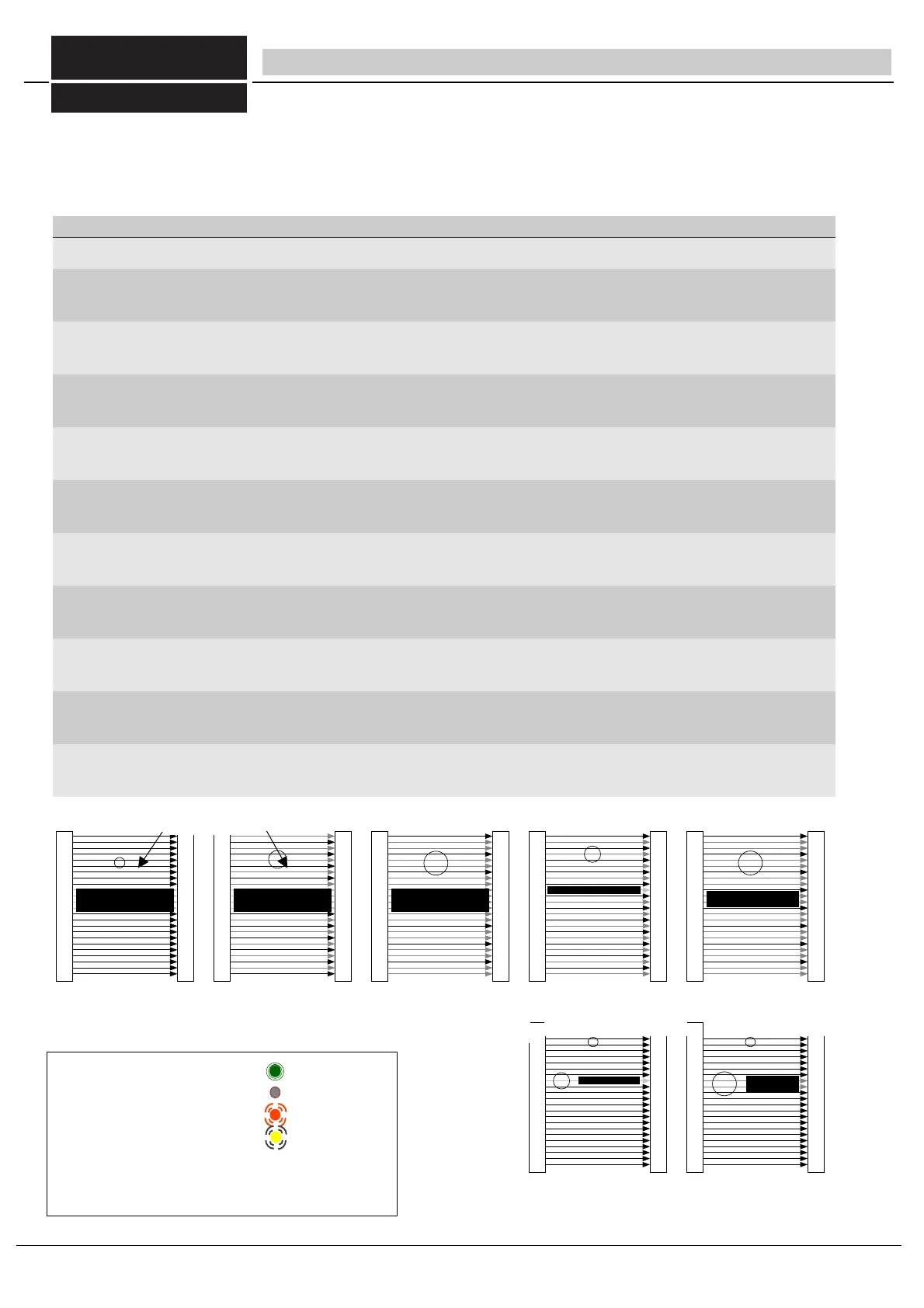

7 BLVT-blanking functions -typical applications
7.2 Typical applications of the several blaking patterns
The Blanking features provide the "skipping " or "blanking" of parts of the protective field. By doing this, parts of tools or machin-
ery may reach into the protective field without the reducing the function of the machine.
Die folgenden Hinweise dienen dazu, einen sichereren Einsatz des Lichtvorhangs mit Ausblendfunktion sicherzustellen.
2. fixed blanking
fig 30/1
complete protection in the entire protective field. Resolution and application same as ULVT.
This blanking pattern provides stationary blanking of up to 5 light curtain sectors of any height.
(e.g. insertion table or material feeder device))
3. fixed blanking
with 1-beam reduced resolution
fig. 30/2
4. fixed blanking
with 2-beam reduced resolution
fig 30/3
5. floating blanking
fig 30/1
6. floating blanking
with 1-beam reduced resolution
fig 30/2
combination of 2. and 8. Blanking of up to 5 objects which are fixed in the protective field, and ad-
ditional blanking of thin moving objects (e.g. hoses or cables) that reach into the field occasio-
nally or permanently, and, by doing so, will interrupt max. 1 beam.
combination of 2. and 8. Blanking of up to 5 objects which are fixed in the protective field, and ad-
ditional blanking of thin moving objects (e.g. hoses or cables) that reach into the field occasio-
nally or permanently, and, by doing so, will interrupt max. 2 beams.
blanking of an object that is moving in the protective field .
(e.g. vertically adjustable table)
combination of 5. and 8. Blanking of an object which is moving in the protective field, and additio-
nal blanking of thin moving objects (e.g. hoses or cables) that reach into the field occasionally or
permanently, and, by doing so, will interrupt max. 1 beam.
7. floating blanking
with 2-beam reduced resolution
Bild 30/3
8. 1-beam reduced resolution
fig 30/4
9. 2-beam reduced resolution
fig 30/5
10.
skip only1 beam
fig 30/6
combination of 5. and 9. Blanking of an object which is moving in the protective field, and additio-
nal blanking of thin moving objects (e.g. hoses or cables) that reach into the field occasionally or
permanently, and, by doing so, will interrupt max. 2 beams.
blanking of thin moving objects (e.g. hoses or cables) that reach into the field occasionally or
permanently, and, by doing so, will interrupt max. 1 beams.
blanking of thin moving objects (e.g. hoses or cables) that reach into the field occasionally or
permanently, and, by doing so, will interrupt max. 2 beams.
A flat metal sheet may reach at any position (except for the synchronization beam) into the protec-
tive field, 1 beam will be skipped once. (i.e. for blanking of thin sheet metal in press brakes).
11.
skip only 2 beams
fig 30/7
A flat metal sheet may reach at any position (except for the synchronization beam) into the protec-
tive field, 2 beam will be skipped once. (i.e. for blanking of thicker sheet metal in press brakes).
fig 30/4 one beam reduced re-
solution as often as needed
fig 30/5 two beams reduced
resolution, as often as needed
fig 30/6 skip one beam once
fig 30/7 skip 2 beams once
detected obstacle
Green LED is on
Yellow and / or
Orange LEDs are flashing
slowly (ca 1 x /s) if the Op-mode is reduced resolution
or floating blanking (rever to page 31)
fig 30/1 fixed or floating blanking
fig 30/2 fixed or floating blan-
king , resolution reduced by 1
beam
interdiction de
redémarrage
Wi e de r anl a uf
Justierhilfe
LS
LS frei
restart interlock
adjustment
LC interrupt
LC free
Aide d´àj ustement
libre
interrompu
unterbrochen
sperre
interdiction de
redémarrage
Wi e de r anl a uf
Justierhilfe
LS
LS frei
restart interlock
adjustment
LC interrupt
LC free
Aide d´àj ustement
libre
interrompu
unterbrochen
sperre
fig 30/3 floating blanking with
resolution reduced by two be-
ams
