Fimar FME/4 - Combusted Gas Exhaust Connection

- 23 - English language
EN
PIZZA OVENS
(GAS POWERED)
COMBUSTED GAS EXHAUST CONNECTION

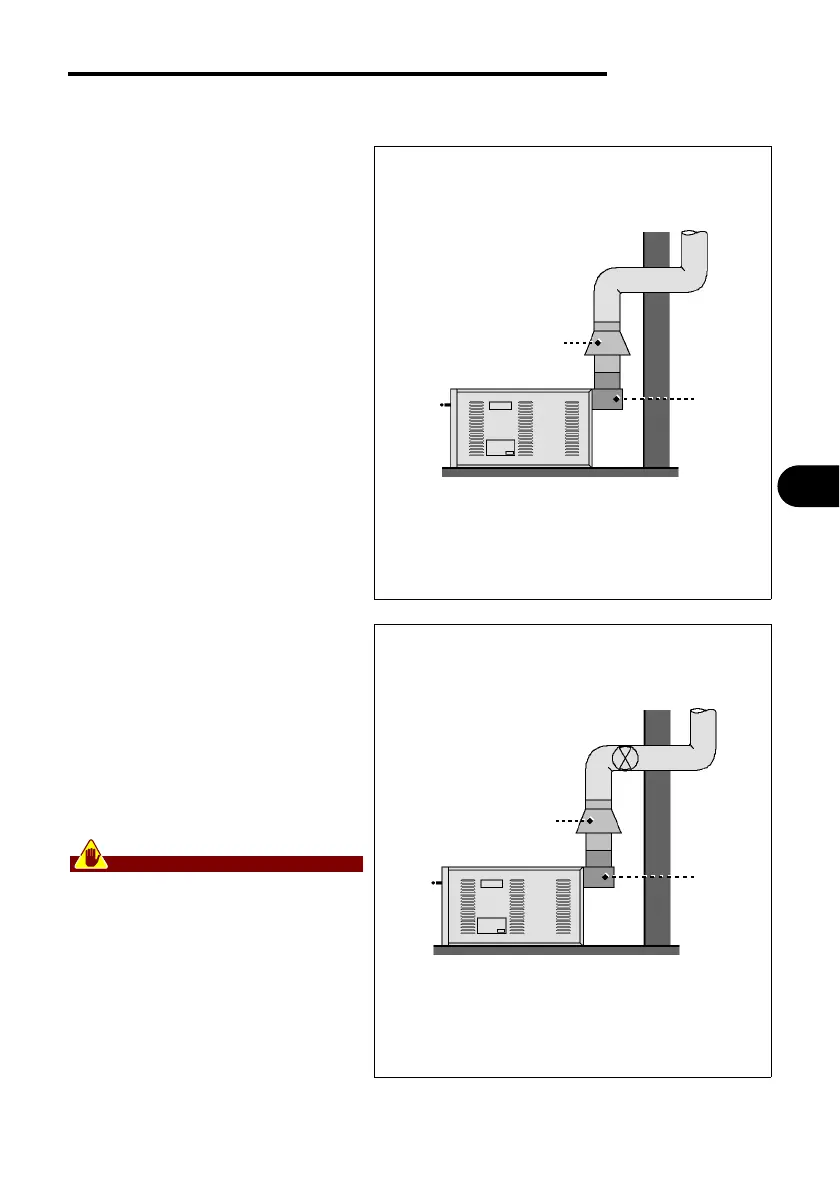

Connection to the natural smoke
exhaust flue
– Install the wind protection fitting
(G) (supplied upon request) on the
exhaust flue (H) and connect it to
the natural smoke exhaust flue to
convey exhaust smoke directly
outdoors.
Connection to the forced smoke
exhaust flue
– Install the wind protection fitting
(G) (supplied upon request) on the
exhaust flue (H) and connect it to
the forced smoke exhaust flue to
convey exhaust smoke directly
outdoors.
Caution - Precaution
The exhaust system fan electrical
control system must be integrat-
ed with the gas supply system so
that the fan turns on as soon as
gas supply is opened.
IDM-34601500600.tif
H
G
IDM-34601500700.tif
H
G
