Fine Offset Electronics WH2950 - Page 11

11

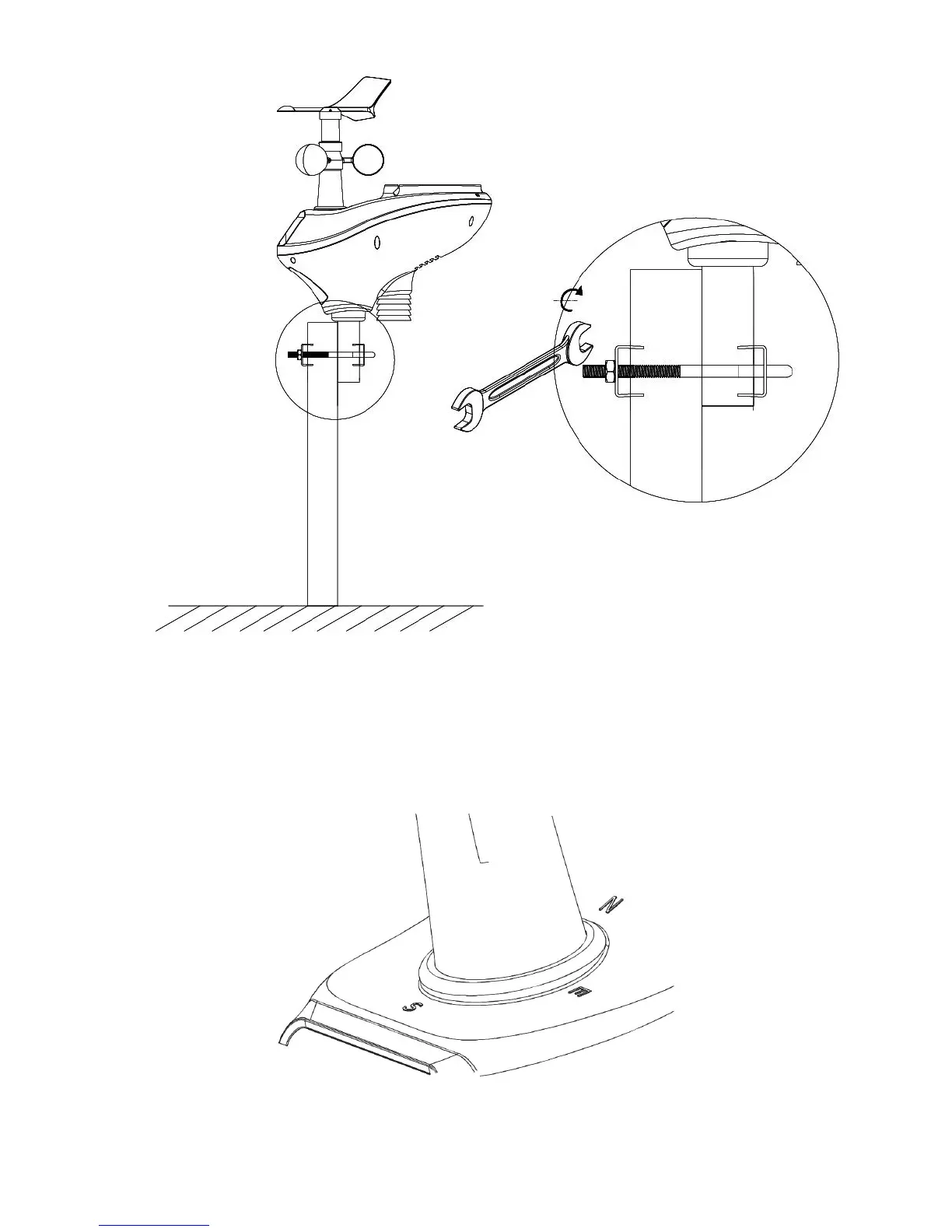

Figure 7
1. Reference Figure . Locate the four wind vane compass rose indicators
of N, E, S, W (representing North, East, South and West). Align the
compass rose direction upon final installation with a compass or GPS.
Figure 8
