Fine Offset Electronics WH2950 User Manual

12

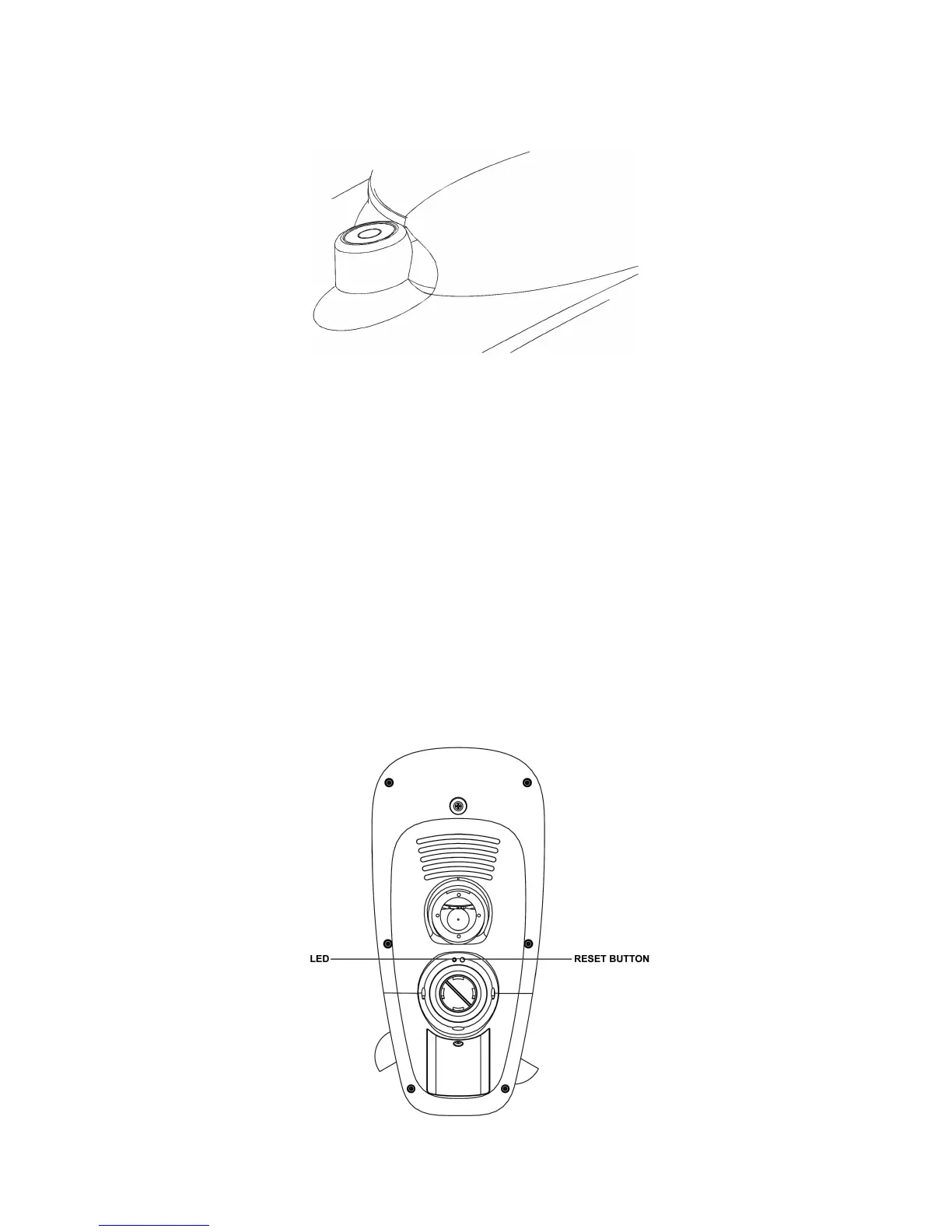

2. Reference Figure . Make sure the sensor array is completely level upon
final installation. Failure to do so will result in inaccurate rain gauge
readings.
Figure 9
5.3.5 Reset Button and Transmitter LED
In the event the sensor array is not transmitting, reset the sensor array.
With an open ended paperclip, press and hold the RESET BUTTON for three
seconds to completely discharge the voltage.
Take out the batteries and wait one minute, while covering the solar panel to
drain the voltage.
Put batteries back in and resynchronize with console by powering down and up
the console with the sensor array about 10 feet away.
Figure 10

Fine Offset Electronics WH2950 Specifications

General

Brand	Fine Offset Electronics
Model	WH2950
Category	Weather Station
Language	English
