Fine Offset Electronics WH2950 - 5.5 Display console

14
5.5 Display console

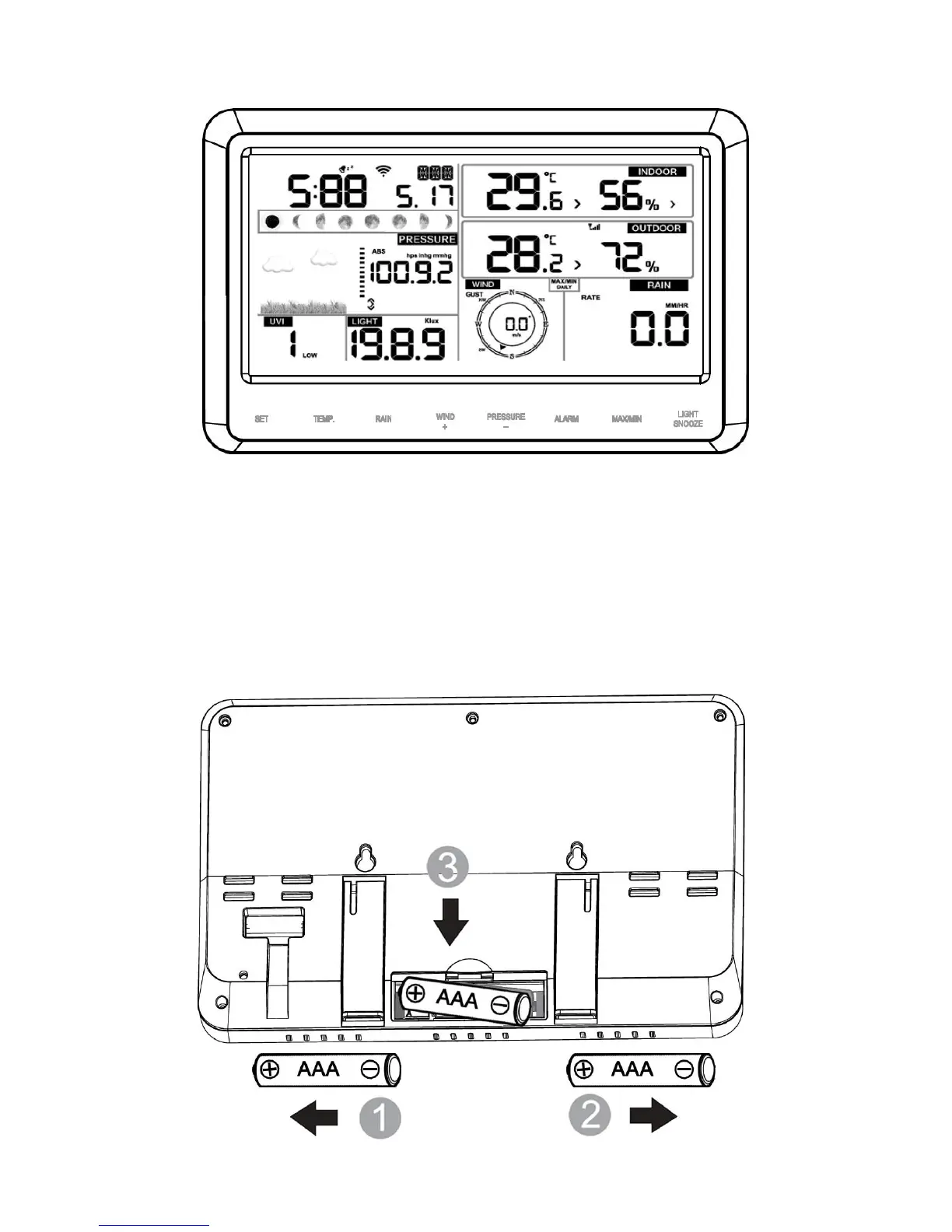

Figure 11
1. Insert the 5V AC adaptor into the back of the display console
Note: Place the outdoor sensor array about 5 to 10 feet from the display console
and wait several minutes for the remote sensors to synchronize with the display
console.
2. Insert 3 AAA batteries into the display console. Please insert the battery as
blew figure 12:
Figure 12
