5.3.1 Install Wind Vane

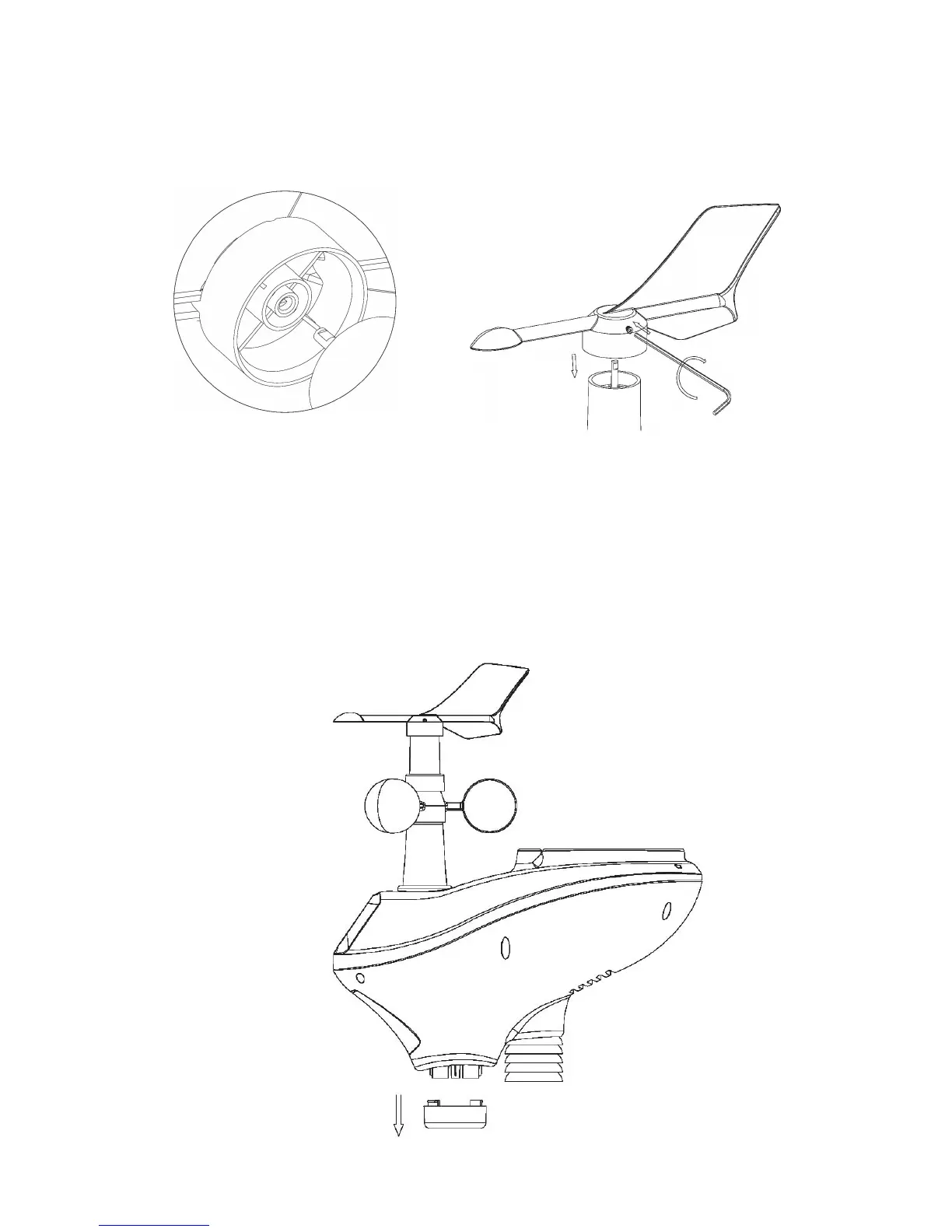

Reference Figure 2. (a) Locate and align the flat key on the wind vane shaft to
the flat key on the wind vane and push the vane on to the shaft. (b) tighten the
set screw with the hex wrench (included).
(a)
(b)
Figure 2
5.3.2 Install Mounting Pole
Reference Figure 3. Remove the mounting pole collar by rotating counter
clockwise.
Figure 3
