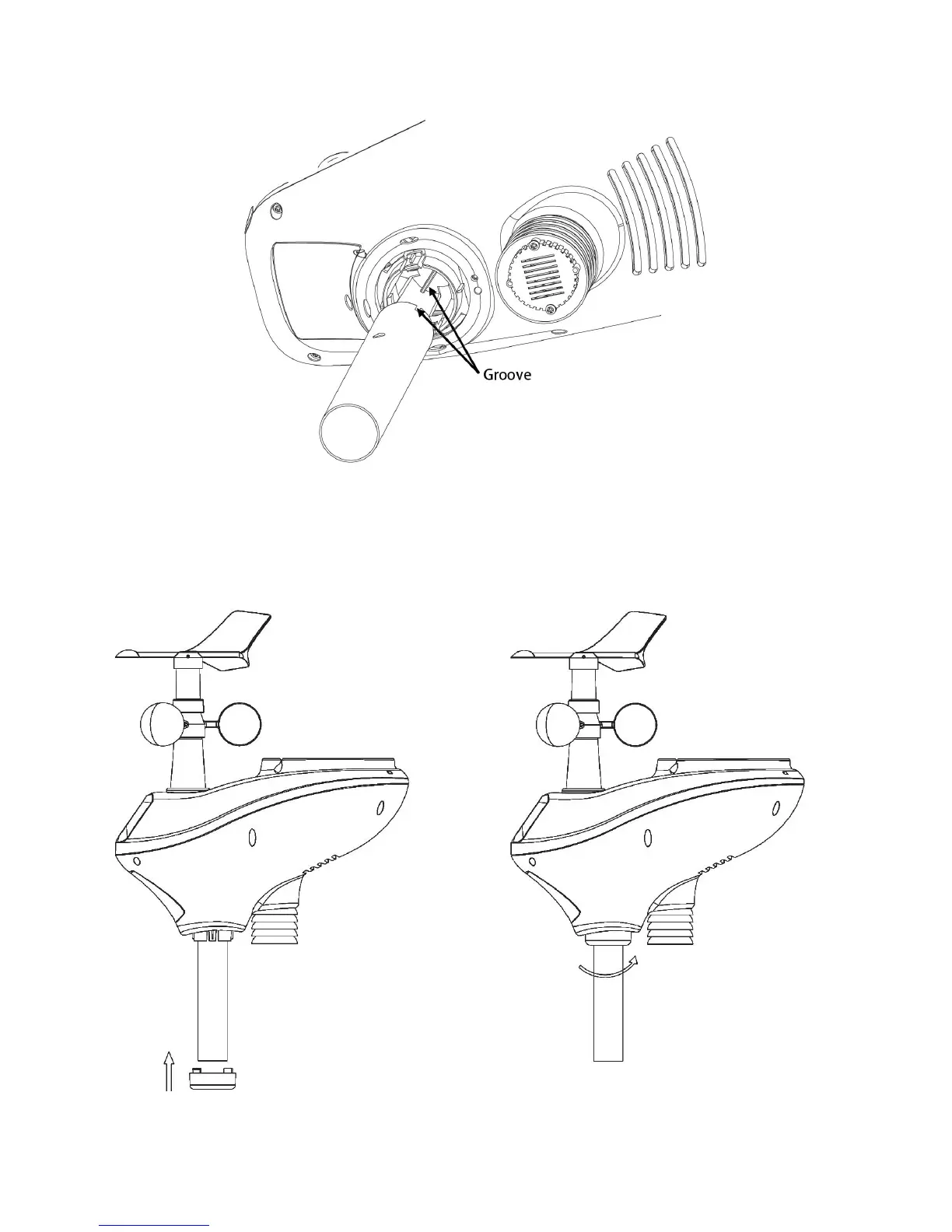

Reference Figure 4. Locate and align the groove on the sensor array and

mounting pole.

Figure 4

Reference Figure 5. Turn the mounting pole collar to lock the pole into place by

rotating clockwise.

Figure 5
